CC1151QRHBRG4Q1 - Texas Instruments

Description: Low-Power Sub-1-GHz Fractional-N UHF Device Family for Automotive

Download CC1151QRHBRG4Q1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

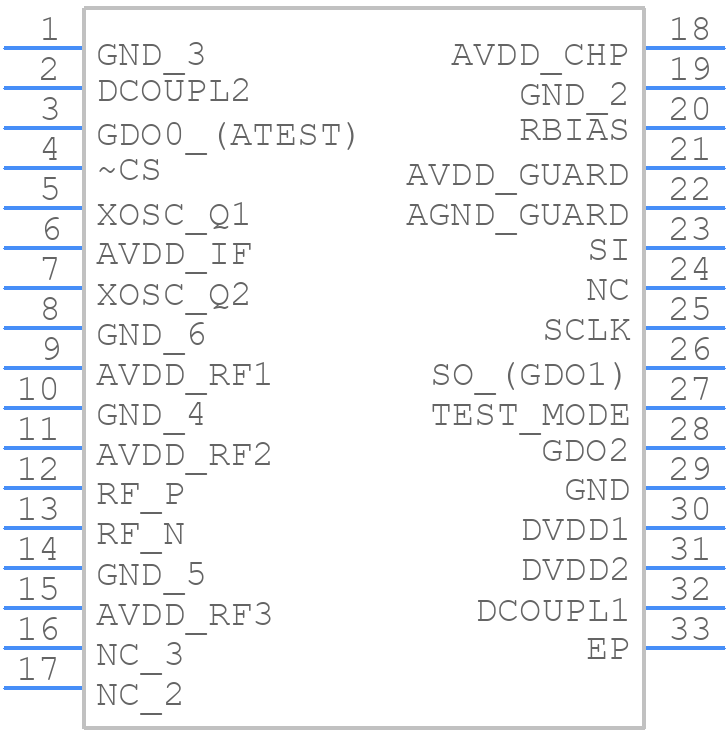

Symbol
CC1151QRHBRG4Q1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC1151QRHBRG4Q1 - Texas Instruments PCB footprint - Other - Other - QFN50P500X500X100-33N
click to zoom
3D Models
CC1151QRHBRG4Q1 - Texas Instruments - 3D model - Other - QFN50P500X500X100-33N
click to zoom

CC1151QRHBRG4Q1 Details

  • Manufacturer Part Number:

    CC1151QRHBRG4Q1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    32

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    5A991.G

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    250 Mbps

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

CC1151QRHBRG4Q1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the CC1151 application note (SWRA095) and the CC1151 development kit documentation. It's essential to follow these guidelines to ensure optimal performance, especially for impedance matching and noise reduction.
  • The CC1151 can be configured for different frequency bands by setting the appropriate values for the FREQ2, FREQ1, and FREQ0 pins. The specific configuration depends on the desired frequency band, which can be found in the CC1151 datasheet and application notes.
  • The maximum transmission power of the CC1151 is +10 dBm, but it can be adjusted using the PATABLE register. The actual transmission power may vary depending on the specific application and regulatory requirements.
  • Frequency hopping can be implemented using the CC1151's built-in frequency synthesizer and the FHSS (Frequency Hopping Spread Spectrum) mode. The specific implementation details can be found in the CC1151 application notes and the TI's frequency hopping tutorial.
  • The minimum number of bytes that can be transmitted in a single packet is 1 byte, but it's recommended to use a minimum of 2-3 bytes to ensure reliable transmission and error detection.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

CC1151QRHBRG4Q1 Overview

Use the download button to access the CC1151QRHBRG4Q1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC115, or try a keyword search, such as Cellular Telephone Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
