CC1312R1F3RGZR - Texas Instruments

Description: SimpleLink™ sub-1 GHz wireless MCU

Download CC1312R1F3RGZR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

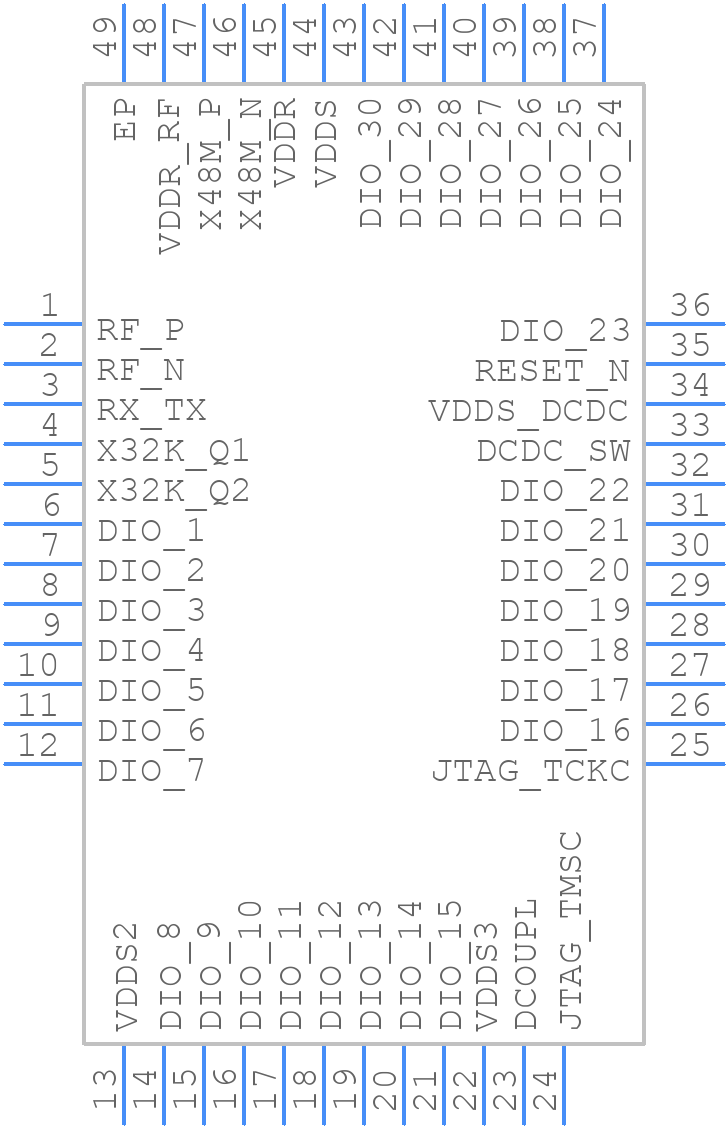

CC1312R1F3RGZR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC1312R1F3RGZR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - BQ500210RGZT
click to zoom
3D Models
CC1312R1F3RGZR - Texas Instruments - 3D model - Quad Flat No-Lead - BQ500210RGZT
click to zoom

CC1312R1F3RGZR Details

  • Manufacturer Part Number:

    CC1312R1F3RGZR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Date Of Intro:

    2018-01-26

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    30

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • RAM (bytes):

    81920

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.8 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

CC1312R1F3RGZR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout guide for the CC1312R1F3RGZR in the 'CC1312R1F3RGZR PCB Layout Guidelines' document. It's essential to follow this guide to ensure optimal performance and minimize electromagnetic interference (EMI).
  • To optimize the CC1312R1F3RGZR's RF performance, ensure that the PCB layout follows the recommended guidelines, use a high-quality antenna, and optimize the transmission power and data rate according to your application's requirements. Additionally, consider using a shielded enclosure to minimize EMI.
  • The CC1312R1F3RGZR has an operating temperature range of -40°C to 85°C. However, the device's performance and reliability may degrade if operated outside the recommended temperature range of -20°C to 70°C.
  • Texas Instruments provides a Secure Boot and Firmware Update guide for the CC1312R1F3RGZR. This guide outlines the steps to implement secure boot, firmware encryption, and secure firmware updates using the TI's Secure Firmware Update (SFU) tool.
  • The CC1312R1F3RGZR has a low power consumption of 5.5mA in receive mode and 20mA in transmit mode (at 0dBm output power). The device also has multiple power modes, including shutdown, sleep, and idle modes, to minimize power consumption when not in use.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CC1312R1F3RGZR Overview

Use the download button to access the CC1312R1F3RGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC131, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
