CC1312R1F3RGZT - Texas Instruments

Description: Texas Instruments SimpeLink? Sub-1 GHz CC1312R Wireless MCU 48-VQFN -40 to 85

Download CC1312R1F3RGZT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

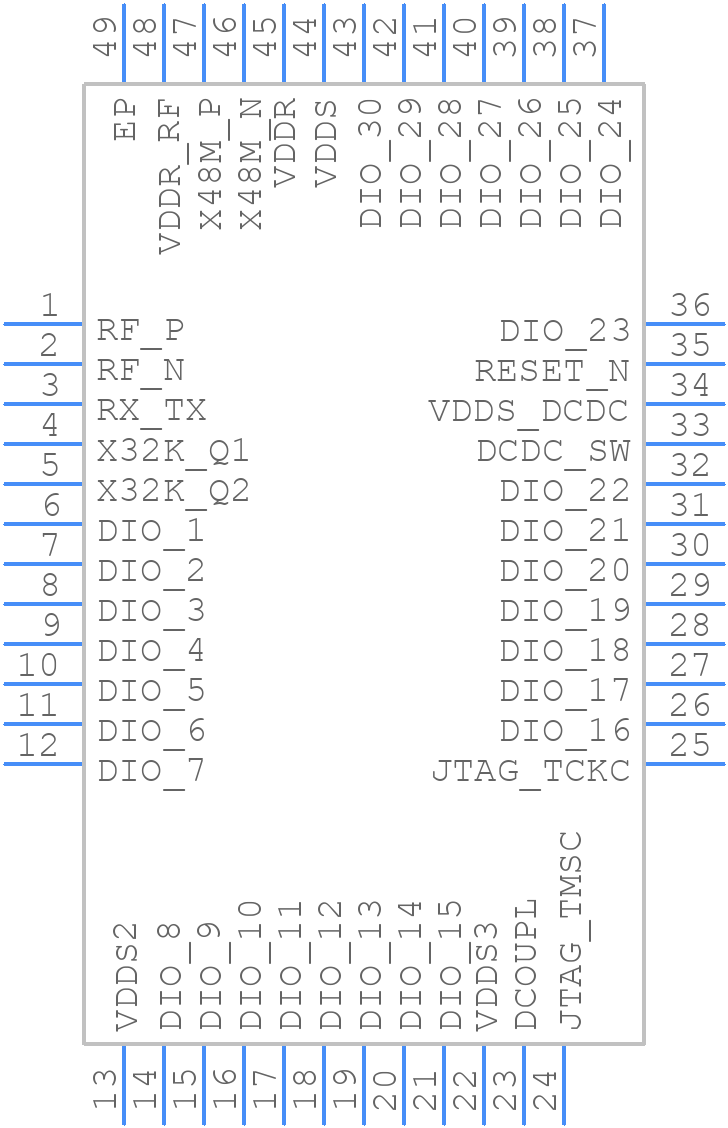

CC1312R1F3RGZT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC1312R1F3RGZT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CC1312R1F3RGZT
click to zoom
3D Models
CC1312R1F3RGZT - Texas Instruments - 3D model - Quad Flat No-Lead - CC1312R1F3RGZT
click to zoom

CC1312R1F3RGZT Details

  • Manufacturer Part Number:

    CC1312R1F3RGZT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.50

  • Date Of Intro:

    2018-01-26

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    DIMENSION CONSIDER BASED ON LINKHTTP://WWW.TI.COM/LIT/DS/SYMLINK/CC1312R.PDF

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    30

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • RAM (bytes):

    81920

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.8 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

CC1312R1F3RGZT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout guide for the CC1312R1F3RGZT in the 'CC1312R1F3RGZT PCB Layout Guidelines' document. It's essential to follow this guide to ensure optimal performance and minimize electromagnetic interference (EMI).
  • To optimize the CC1312R1F3RGZT's RF performance, ensure that the PCB layout follows the recommended guidelines, use a high-quality antenna, and optimize the transmission power and data rate according to your application's requirements. Additionally, consider using a shielded enclosure to minimize EMI.
  • The CC1312R1F3RGZT has an operating temperature range of -40°C to 85°C. However, it's essential to note that the device's performance may degrade at extreme temperatures, and the operating temperature range may vary depending on the specific application and use case.
  • Texas Instruments provides a Secure Boot and Firmware Update guide for the CC1312R1F3RGZT, which outlines the recommended procedures for implementing secure boot and firmware updates. It's essential to follow this guide to ensure the security and integrity of your device.
  • The CC1312R1F3RGZT has a typical current consumption of 5.5 mA in receive mode and 20 mA in transmit mode. However, the actual power consumption may vary depending on the specific application, data rate, and transmission power. It's essential to consult the datasheet and application notes for more detailed information.
