CC2340R52E0RGER - Texas Instruments

Description: ARM Microcontrollers - MCU SimpleLink™ 32-bit Arm® Cortex®-M0+ Bluetooth® Low Energy wireless MCU with 512-kB flash 24-VQFN -40 to 125

Download CC2340R52E0RGER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

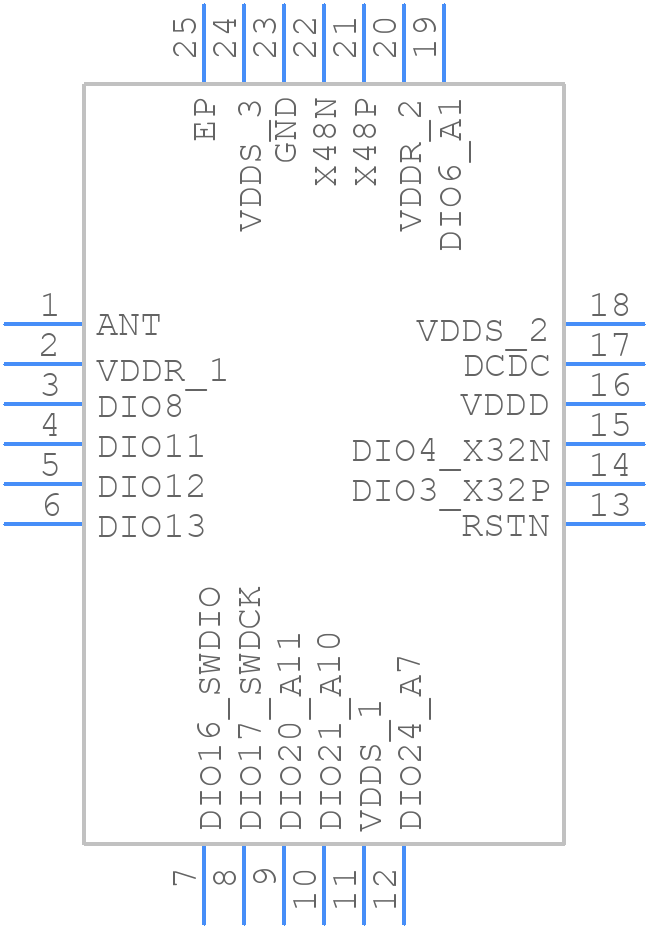

CC2340R52E0RGER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC2340R52E0RGER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024B
click to zoom
3D Models
CC2340R52E0RGER - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024B
click to zoom

CC2340R52E0RGER Details

  • Manufacturer Part Number:

    CC2340R52E0RGER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.50

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.8 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

CC2340R52E0RGER Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout guide in the CC2340R52E0RGER datasheet, but for optimal performance, it's recommended to follow the layout guidelines in the TI's 'CC2340R52E0RGER PCB Design and Layout Guidelines' application note.
  • TI provides an antenna design guide in the CC2340R52E0RGER datasheet, but for optimal performance, it's recommended to use TI's Antenna Design Tool or consult with a qualified RF engineer to optimize the antenna design for the specific application.
  • The CC2340R52E0RGER has an operating temperature range of -40°C to 85°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliable operation.
  • To ensure EMC, follow the guidelines in the CC2340R52E0RGER datasheet and application notes, and consider using shielding, filtering, and grounding techniques to minimize electromagnetic interference.
  • TI recommends using a 10uF capacitor in parallel with a 100nF capacitor for power supply decoupling, as described in the CC2340R52E0RGER datasheet.
