CC2430F128RTC - Texas Instruments

Description: TEXAS INSTRUMENTS - CC2430F128RTC - RF Transceiver, Zigbee, 2.4GHz to 2.4835GHz, O-QPSK, 2V to 3.6V, 26dBm Out/-92dBm In, QFN-48

Download CC2430F128RTC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

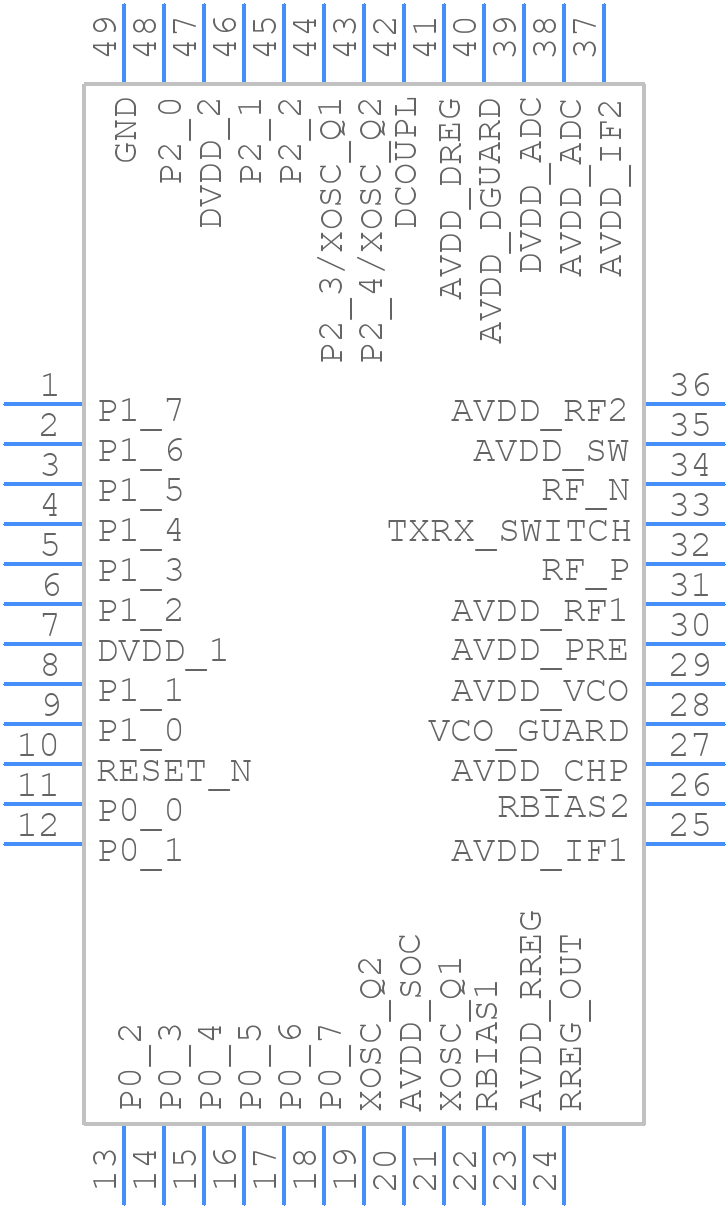

Symbol
CC2430F128RTC - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC2430F128RTC - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTC (S-PVQFN-N48
click to zoom
3D Models
CC2430F128RTC - Texas Instruments - 3D model - Quad Flat No-Lead - RTC (S-PVQFN-N48
click to zoom

CC2430F128RTC Details

  • Manufacturer Part Number:

    CC2430F128RTC

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

CC2430F128RTC Frequently Asked Questions (FAQs)

  • The maximum transmission power of the CC2430F128RTC is +4 dBm.
  • Frequency hopping can be implemented using the device's built-in frequency synthesizer and the IEEE 802.15.4 MAC layer. The CC2430F128RTC supports 16 channels in the 2.4 GHz band, and frequency hopping can be enabled using the device's register settings.
  • The current consumption of the CC2430F128RTC varies depending on the mode. In transmit mode, the current consumption is around 29 mA, in receive mode it's around 23 mA, and in sleep mode it's around 0.2 mA.
  • The CC2430F128RTC has a built-in AES encryption engine that can be used to encrypt and decrypt data. The device provides a set of registers and commands to configure and use the AES engine. The AES engine supports 128-bit keys and can be used in conjunction with the device's MAC layer.
  • The CC2430F128RTC supports a maximum data rate of 250 kbps in the 2.4 GHz band.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CC2430F128RTC Overview

Use the download button to access the CC2430F128RTC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC243, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
