CC2430F32RTC - Texas Instruments

Description: RF System on a Chip - SoC CC2430-F32 CHIP W/ 32kB Flash

Download CC2430F32RTC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

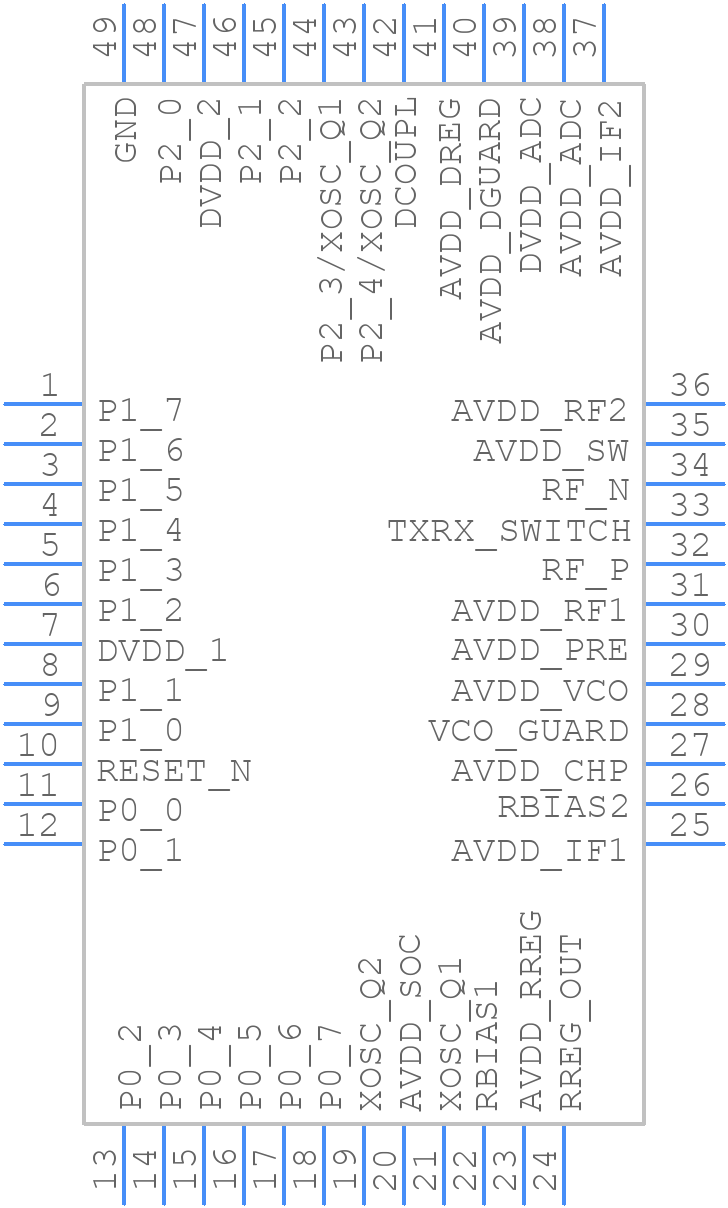

CC2430F32RTC - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC2430F32RTC - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTC (S-PVQFN-N48
click to zoom
3D Models
CC2430F32RTC - Texas Instruments - 3D model - Quad Flat No-Lead - RTC (S-PVQFN-N48
click to zoom

CC2430F32RTC Details

  • Manufacturer Part Number:

    CC2430F32RTC

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

CC2430F32RTC Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for CC2430F32RTC is 2.0V to 3.6V. However, it can operate from 1.9V to 3.7V, but with reduced performance and reliability.
  • To configure the CC2430F32RTC for optimal power consumption, set the voltage regulator to the lowest possible voltage, use the lowest possible clock frequency, and enable power-saving modes such as sleep mode and idle mode. Additionally, disable unnecessary peripherals and use a low-power oscillator.
  • The maximum data transfer rate of the CC2430F32RTC's UART is 921.6 kbps. However, the actual data transfer rate may be limited by the baud rate generator and the clock frequency.
  • To implement a reliable reset mechanism for the CC2430F32RTC, use a combination of hardware and software reset mechanisms. Connect a reset button to the RESET_N pin, and use a software reset command to reset the device. Additionally, use a power-on reset circuit to ensure a clean power-up sequence.
  • The accuracy of the CC2430F32RTC's internal oscillator is ±10% over the operating temperature range of -40°C to 85°C. However, the accuracy can be improved by using an external crystal oscillator or by calibrating the internal oscillator using a reference clock.
