CC2430F32RTCR - Texas Instruments

Description: TEXAS INSTRUMENTS - CC2430F32RTCR - RF TRANSCEIVER, 2.4GHZ TO 2.4835GHZ, VQFN-48

Download CC2430F32RTCR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

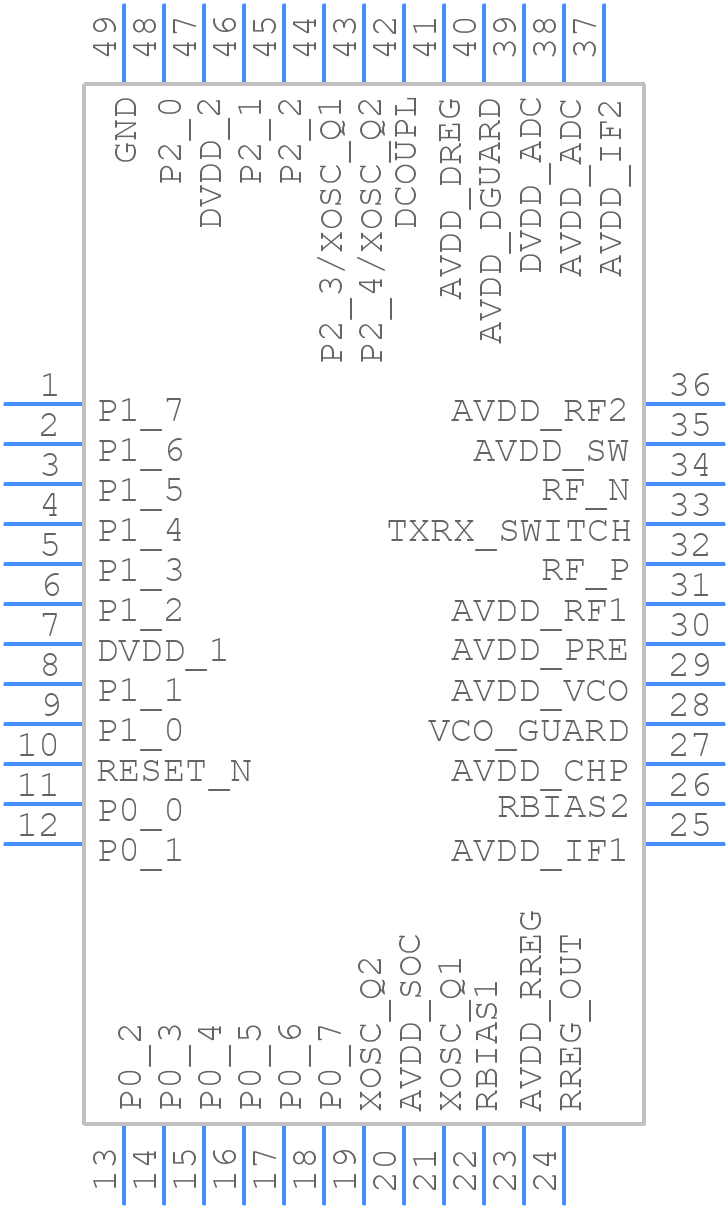

CC2430F32RTCR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC2430F32RTCR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTC (S-PVQFN-N48
click to zoom
3D Models
CC2430F32RTCR - Texas Instruments - 3D model - Quad Flat No-Lead - RTC (S-PVQFN-N48
click to zoom

CC2430F32RTCR Details

  • Manufacturer Part Number:

    CC2430F32RTCR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.50

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

CC2430F32RTCR Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for CC2430F32RTCR is 2.0V to 3.6V, with a typical voltage of 2.4V.
  • To configure the CC2430F32RTCR for optimal power consumption, use the lowest possible voltage, disable unnecessary peripherals, and use the power modes (e.g., sleep, idle) provided by the chip. Additionally, use the TI-provided power management APIs and follow the guidelines in the CC2430F32RTCR Technical Reference Manual.
  • The maximum data transfer rate of the CC2430F32RTCR's UART is 921.6 kbps.
  • Yes, the CC2430F32RTCR can be used with an external antenna. However, the antenna must be designed and matched to the chip's 2.4 GHz frequency band, and the RF layout and routing must be carefully designed to ensure optimal performance.
  • Frequency hopping can be implemented using the CC2430F32RTCR's built-in frequency synthesizer and the TI-provided APIs for frequency hopping. The chip supports adaptive frequency hopping (AFH) and can hop between 79 channels in the 2.4 GHz band.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CC2430F32RTCR Overview

Use the download button to access the CC2430F32RTCR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC243, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
