CC2564MODNCMOET footprint, schematic symbol and 3D model by Texas Instruments

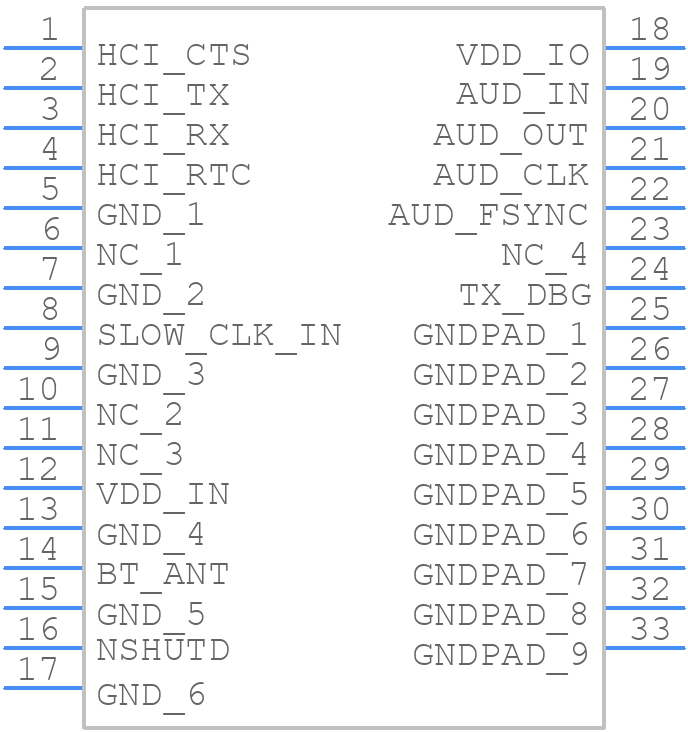

Symbol

click to zoom

PCB Footprints

CC2564MODNCMOET - Texas Instruments PCB footprint - Other - Other - MOE0033A

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for CC2564MODNCMOET
Part Number CC2564MODNCMOET
Manufacturer Texas Instruments
Pin Count 33
Part Category Undefined or Miscellaneous
Package Category Other
Footprint Name Other - MOE0033A
Released Date Aug 25, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

CC2564MODNCMOET Details

Manufacturer Part Number:
CC2564MODNCMOET
Brand Name:
Texas Instruments
Rohs Code:
Yes
Part Life Cycle Code:
Not Recommended
HTS Code:
8542.31.00.30
Manufacturer:
Texas Instruments
YTEOL:
4
JESD-30 Code:
S-XXMA-N33
JESD-609 Code:
e3
Length:
7 mm
Moisture Sensitivity Level:
3
Number of Terminals:
33
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-30 °C
Package Body Material:
UNSPECIFIED
Package Code:
XMA
Package Shape:
SQUARE
Package Style:
MICROELECTRONIC ASSEMBLY
Seated Height-Max:
1.4 mm
Supply Voltage-Max:
4.8 V
Supply Voltage-Min:
2.2 V
Supply Voltage-Nom:
3.6 V
Surface Mount:
YES
Technology:
CMOS
Terminal Finish:
Tin (Sn) - with Nickel (Ni) barrier
Terminal Form:
NO LEAD
Terminal Position:
UNSPECIFIED
Width:
7 mm
uPs/uCs/Peripheral ICs Type:
RFSoC

CC2564MODNCMOET Frequently Asked Questions (FAQs)

Texas Instruments provides a recommended PCB layout in the CC2564MODNCMOET datasheet, but it's also recommended to follow the guidelines in the TI's 'Bluetooth Low Energy (BLE) Module Layout Guidelines' application note (SWRA592).
The CC2564MODNCMOET has a built-in antenna, but if you need to design a custom antenna, TI recommends following the guidelines in the 'Antenna Design Guide for CC256x' application note (SWRA593).
The CC2564MODNCMOET is rated for operation from -40°C to 85°C, but it's recommended to follow the thermal design guidelines in the datasheet to ensure reliable operation.
TI provides a firmware update tool and guidelines in the 'CC256x Firmware Update Guide' application note (SWRA594). It's recommended to follow these guidelines to ensure successful firmware updates.
The CC2564MODNCMOET has a typical current consumption of 5.5mA in transmit mode and 1.5mA in receive mode. For more detailed power consumption characteristics, refer to the datasheet and the 'CC256x Power Consumption' application note (SWRA595).

Trust Checks

Expert Contribution

System Verified

Community Approved

CC2564MODNCMOET Overview

Use the download button to access the CC2564MODNCMOET schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like CC256, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
