- Part Number CC2590RGVR
- Manufacturer Texas Instruments
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - RGV (S-PVQFN-N16)
- Released Date Nov 18, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
CC2590RGVR Details
-
Manufacturer Part Number:
CC2590RGVR
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
5A991.G
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
-
Additional Feature:
LOW NOISE
-
Construction:
COMPONENT
CC2590RGVR Frequently Asked Questions (FAQs)
-
The recommended layout and placement for the CC2590RGVR can be found in the CC2590RGVR Layout and Placement Application Note (SWRA419) from Texas Instruments. It provides guidelines for optimal PCB layout, component placement, and routing to ensure optimal performance and minimize electromagnetic interference (EMI).
-
To optimize the CC2590RGVR for low power consumption, follow the guidelines in the CC2590RGVR Power Management Application Note (SWRA420) from Texas Instruments. This includes using the lowest possible voltage supply, minimizing current consumption during transmit and receive modes, and using power-saving features such as sleep mode and wake-up on radio.
-
The recommended settings for the CC2590RGVR's transmit power and data rate depend on the specific application and regulatory requirements. However, as a general guideline, the CC2590RGVR can operate at transmit powers up to +20 dBm and data rates up to 2 Mbps. Refer to the CC2590RGVR datasheet and application notes for more information on optimizing transmit power and data rate for specific use cases.
-
To troubleshoot issues with the CC2590RGVR's RF performance, follow the guidelines in the CC2590RGVR RF Troubleshooting Application Note (SWRA421) from Texas Instruments. This includes checking the RF layout and component placement, verifying the antenna design and matching, and using tools such as spectrum analyzers and network analyzers to diagnose and optimize RF performance.
-
The CC2590RGVR has a maximum junction temperature of 150°C. To ensure reliable operation, it is essential to provide adequate thermal management, such as using heat sinks, thermal vias, and thermal pads. Refer to the CC2590RGVR datasheet and thermal design guidelines from Texas Instruments for more information on thermal considerations.
Trust Checks
Community Provided
System Verified
Community Approved
CC2590RGVR Overview

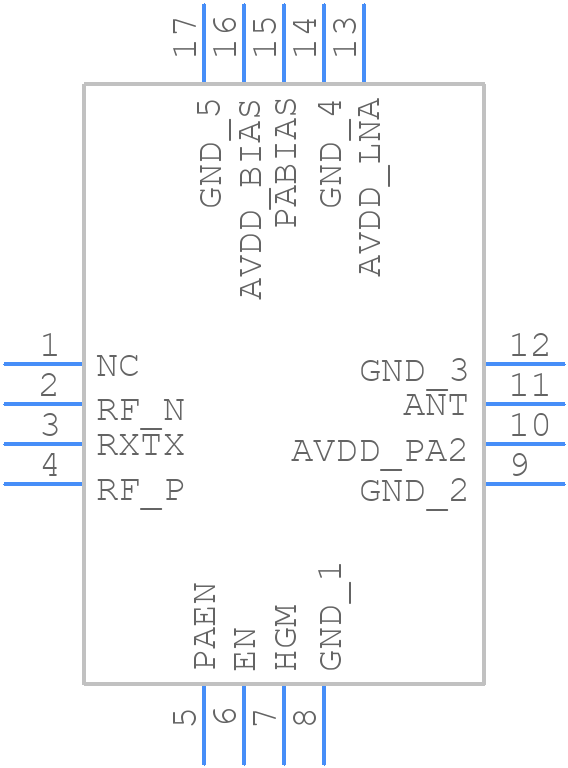

Use the download button to access the CC2590RGVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC259,
or try a keyword search, such as RF/Microwave Amplifiers
