CC2642R1FRGZR - Texas Instruments

Description: Texas Instruments SimpleLink? Bluetooth? Low energy CC2642R Wireless MCU 48-VQFN -40 to 85

Download CC2642R1FRGZR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

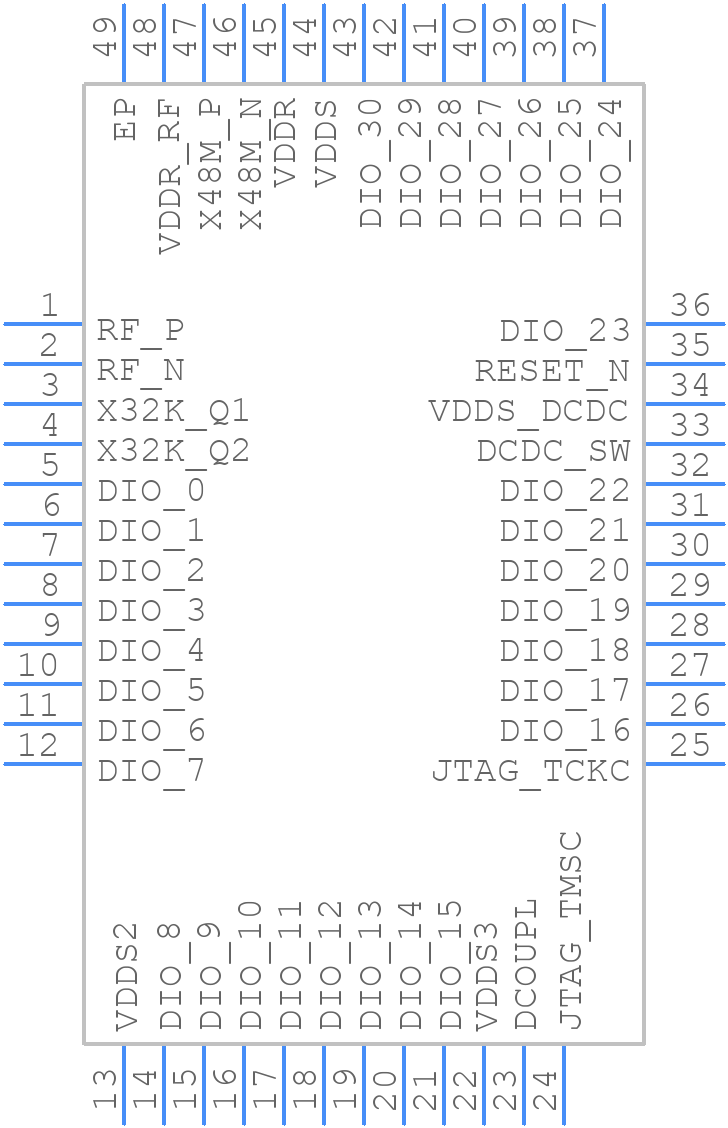

CC2642R1FRGZR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC2642R1FRGZR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ (S-PVQFN-N48)
click to zoom
3D Models
CC2642R1FRGZR - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ (S-PVQFN-N48)
click to zoom

CC2642R1FRGZR Details

  • Manufacturer Part Number:

    CC2642R1FRGZR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.50

  • Date Of Intro:

    2018-01-26

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.8 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

CC2642R1FRGZR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout guide for the CC2642R1FRGZR in the 'CC2642R1FRGZR PCB Layout Guidelines' document. It's essential to follow this guide to ensure optimal performance and minimize electromagnetic interference (EMI).
  • To optimize power consumption, use the device's low-power modes (e.g., shutdown, standby, and sleep modes) and adjust the clock frequency according to your application's requirements. Additionally, use the Power Management Module (PMM) to control the power domains and reduce power consumption.
  • The maximum transmission power of the CC2642R1FRGZR is +5 dBm. However, this can be adjusted using the device's transmit power control feature, which allows you to set the transmit power to a value between -20 dBm and +5 dBm.
  • To implement antenna diversity, you'll need to use an external antenna switch and connect it to the device's antenna pins. Then, use the device's antenna diversity feature to switch between the two antennas based on the received signal strength.
  • The CC2642R1FRGZR supports a maximum data rate of 2 Mbps in Bluetooth 5.0 mode and 1 Mbps in Bluetooth 4.2 mode.
