CC2642R1FRGZT - Texas Instruments

Description: RF Microcontrollers - MCU

Download CC2642R1FRGZT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

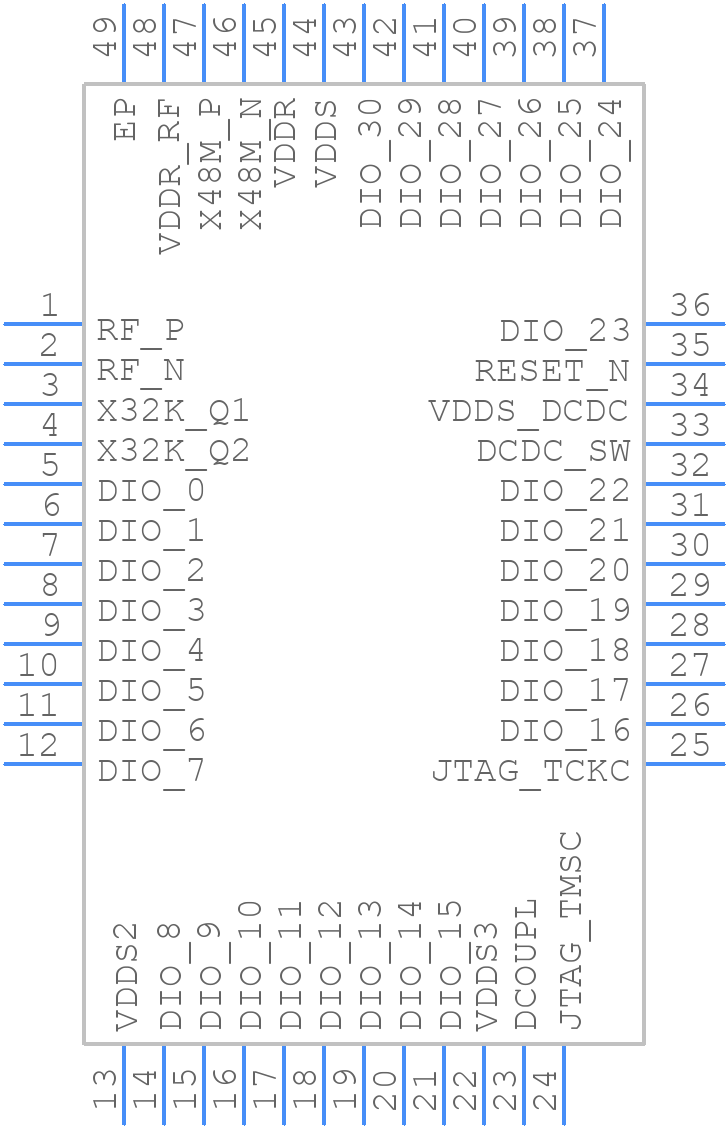

CC2642R1FRGZT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC2642R1FRGZT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ0048A
click to zoom
3D Models
CC2642R1FRGZT - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ0048A
click to zoom

CC2642R1FRGZT Details

  • Manufacturer Part Number:

    CC2642R1FRGZT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.50

  • Date Of Intro:

    2018-01-26

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.8 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

CC2642R1FRGZT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout guide for the CC2642R1FRGZT in the 'CC2642R1FRGZT PCB Layout Guidelines' document. It's essential to follow this guide to ensure optimal performance and minimize electromagnetic interference (EMI).
  • To optimize power consumption, use the device's low-power modes (e.g., shutdown, standby, and sleep modes) and adjust the clock frequency according to your application's requirements. Additionally, use the Power Management API provided by TI to configure the device's power settings.
  • The maximum transmission power of the CC2642R1FRGZT is +5 dBm. However, this can be adjusted using the device's transmit power control feature, which allows you to set the transmit power to a value between -20 dBm and +5 dBm.
  • To implement antenna diversity, you'll need to use an external antenna switch and connect it to the device's antenna pins. Then, use the device's API to control the antenna switch and select the optimal antenna based on the received signal strength.
  • The maximum data transfer rate of the CC2642R1FRGZT is 2 Mbps. However, the actual data transfer rate may vary depending on the specific application and the environment in which the device is operating.
