Texas Instruments provides a recommended PCB layout in the CC3301 application note (SLAU445). It's essential to follow the layout guidelines to minimize noise, ensure proper decoupling, and optimize the device's performance.
To minimize power consumption, configure the device to use the lowest possible frequency, disable unnecessary peripherals, and use the power-saving modes (e.g., sleep mode). Additionally, optimize the firmware to reduce the number of transactions and use the lowest possible voltage.
The CC3301ENJARSBR has an operating temperature range of -40°C to 85°C. However, it's essential to note that the device's performance may degrade at extreme temperatures, and the recommended operating temperature range for optimal performance is 0°C to 70°C.
To troubleshoot issues, start by reviewing the datasheet and application notes. Check the device's configuration, firmware, and PCB layout. Use debugging tools, such as logic analyzers or oscilloscopes, to analyze the device's signals. Texas Instruments also provides a forum and support resources to help resolve issues.
Yes, the CC3301ENJARSBR is designed to meet various regulatory requirements, including FCC, CE, and UL. However, it's essential to ensure that the final design meets the specific certification requirements. Texas Instruments provides guidance on certification and compliance in the device's documentation and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CC3301ENJARSBR Overview

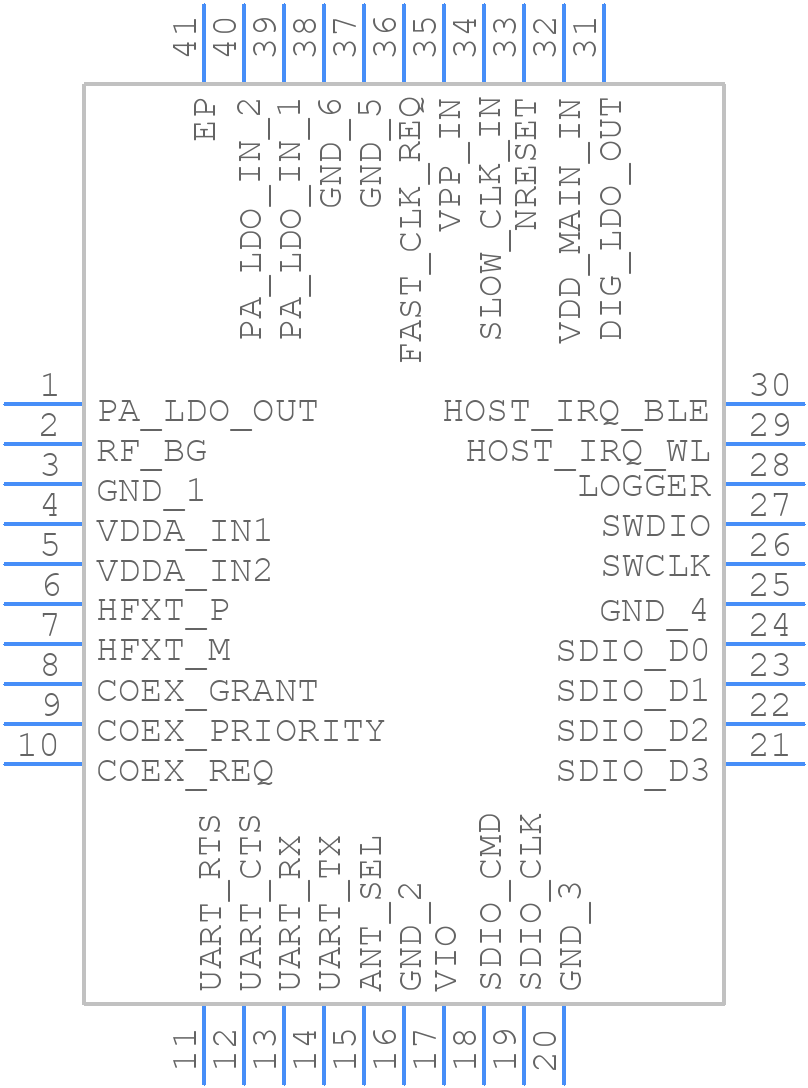

Use the download button to access the CC3301ENJARSBR schematic symbol, PCB footprint, and 3D model.
