Description:Wi-Fi 6 (802.11ax)
• Bluetooth® Low Energy 5.4 in CC33x1 devices
• Companion IC to any processor or MCU host
capable of running a TCP/IP stack
• Integrated 2.4GHz and 5GHz PA for complete
wireless solution with up to +20.5dBm output
power.
• Operating temperature: –40°C to +105°C
• Application throughput up to 50Mbps
Texas Instruments provides a recommended PCB layout guide in the CC3351EMUBGTR evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
To minimize power consumption, configure the device to use the lowest possible frequency, disable unnecessary peripherals, and use the power-saving modes (e.g., LPDS, Hibernate) when the device is not actively transmitting or receiving data. Refer to the CC3351 Power Management Guide for more information.
The maximum transmit power of the CC3351ENJARSBR is +20 dBm (100 mW) for IEEE 802.11b/g/n and +18 dBm (63 mW) for IEEE 802.11a/n/ac. However, the actual transmit power may vary depending on the specific application, antenna, and regulatory requirements.
Implement Wi-Fi coexistence by using the CC3351's built-in coexistence features, such as Dynamic Frequency Selection (DFS) and Transmit Power Control (TPC). Additionally, use the device's APIs to implement custom coexistence algorithms and prioritize traffic based on the specific wireless technology requirements.
Texas Instruments recommends using a monopole or dipole antenna design with a gain of 2-3 dBi for optimal Wi-Fi performance. The antenna should be placed at least 10 mm away from the PCB edge and oriented perpendicular to the PCB to minimize interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CC3351ENJARSBR Overview

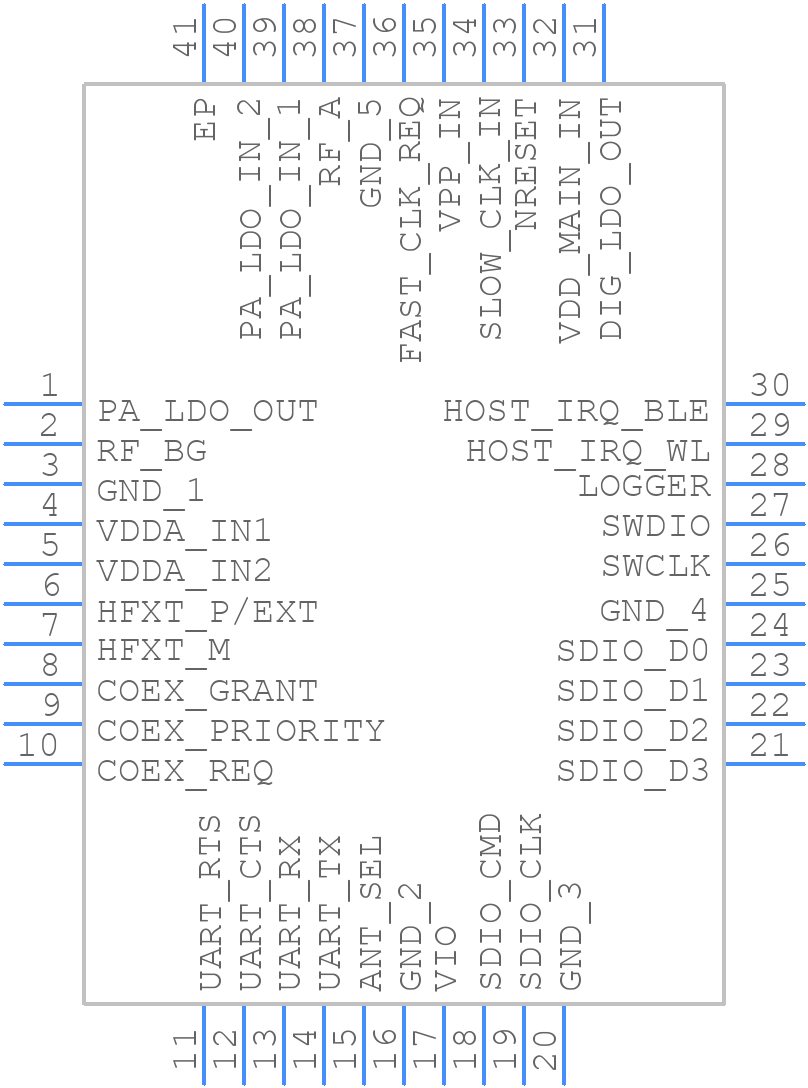

Use the download button to access the CC3351ENJARSBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC335,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
