CC400-RTR2 - Texas Instruments

Description: RF Transceiver FSK 3V 28-Pin SSOP T/R

Download CC400-RTR2 Model

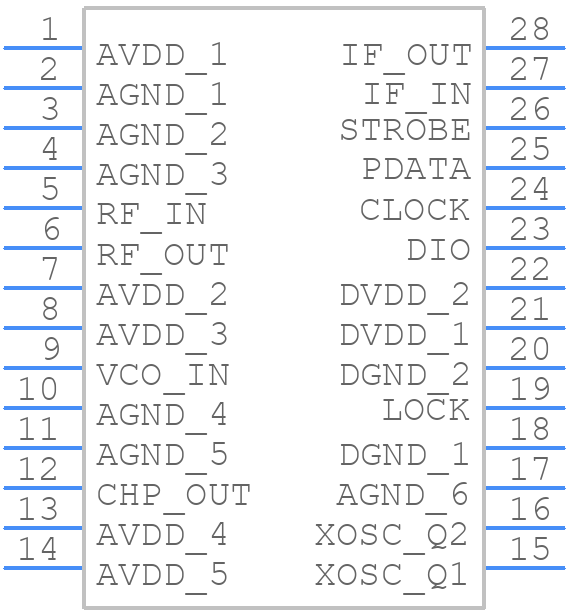

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CC400-RTR2 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - ssop-28
click to zoom
3D Models
CC400-RTR2 - Texas Instruments  - 3D model - Small Outline Packages - ssop-28
click to zoom

CC400-RTR2 Details

  • Manufacturer Part Number:

    CC400-RTR2

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SSOP-28

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Data Rate:

    9 Mbps

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    10.2 mm

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

CC400-RTR2 Frequently Asked Questions (FAQs)

  • TI recommends a 4-layer PCB with a solid ground plane, and a separate power plane for the CC400-RTR2. Keep the RF traces short and away from digital signals. Use a 50-ohm microstrip or coplanar waveguide for the antenna connection.
  • Configure the device for the highest data rate (250 kbps) and adjust the transmission power (up to 20 dBm) based on the specific application requirements. Use the SmartRF Studio software to optimize the settings for your specific use case.
  • TI recommends a quarter-wavelength monopole antenna or a dipole antenna with a 50-ohm impedance. The antenna should be designed to operate at the desired frequency band (e.g., 868 MHz or 915 MHz) and should be matched to the CC400-RTR2's output impedance.
  • Use the device's built-in frequency hopping capabilities by configuring the frequency hopping mode and setting the hop sequence. For adaptive frequency hopping, use the device's RSSI (Received Signal Strength Indication) and LQI (Link Quality Indication) values to dynamically adjust the hop sequence and frequency.
  • Use the AES-128 encryption algorithm and implement a secure key exchange mechanism, such as Elliptic Curve Cryptography (ECC) or Advanced Encryption Standard (AES) with a secure key exchange protocol like Diffie-Hellman or public-key cryptography.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CC400-RTR2 Overview

Use the download button to access the CC400-RTR2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC400, or try a keyword search, such as Other RF/Microwave Devices
