CC430F5133IRGZT - Texas Instruments

Description: 16-Bit ultra-low-power CC430 Sub 1 GHz wireless MCU with 12-Bit ADC, 8kB Flash and 2kB RAM

Download CC430F5133IRGZT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

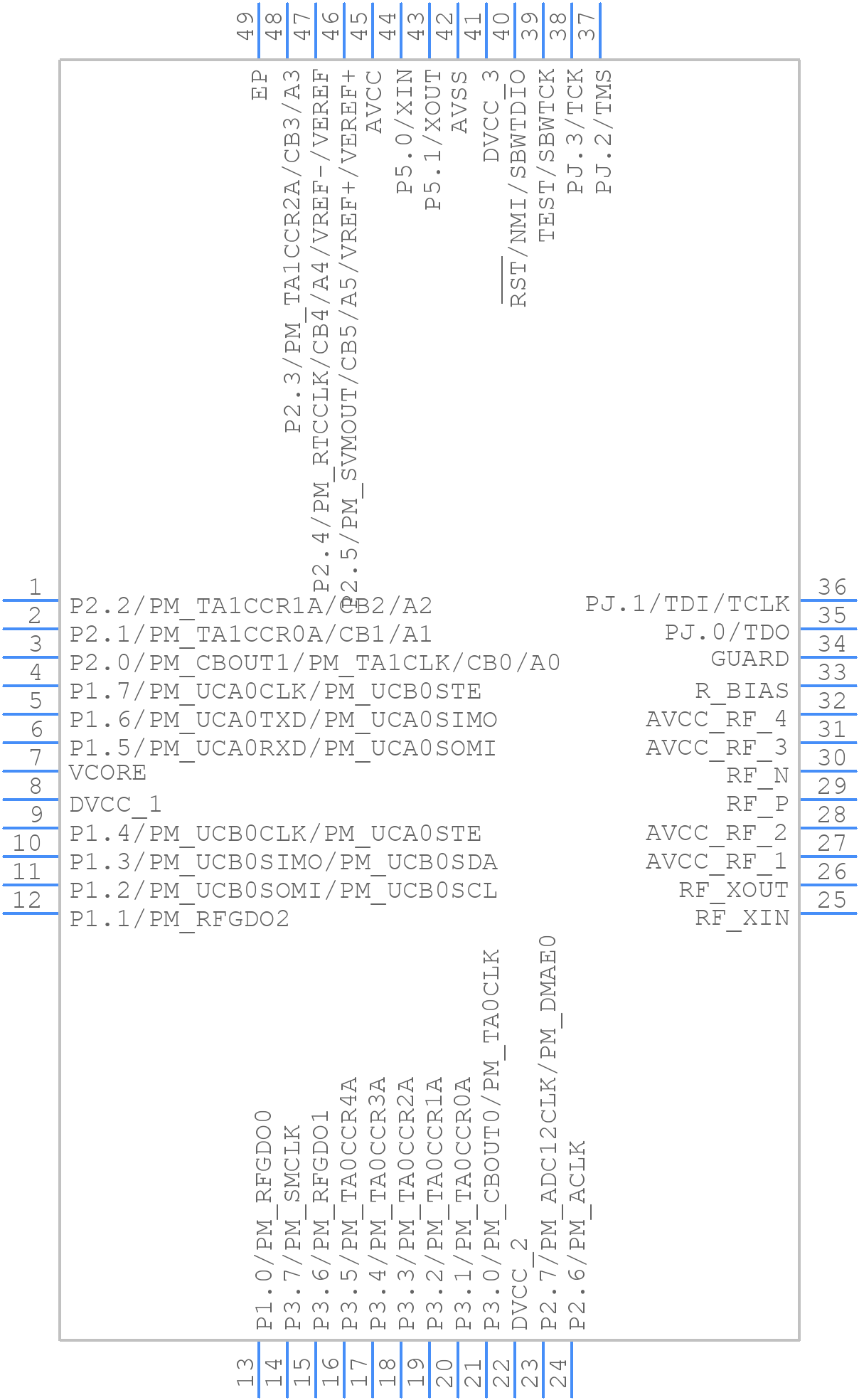

CC430F5133IRGZT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC430F5133IRGZT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ0048B
click to zoom
3D Models
CC430F5133IRGZT - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ0048B
click to zoom

CC430F5133IRGZT Details

  • Manufacturer Part Number:

    CC430F5133IRGZT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.50

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    500 Mbps

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    2.2 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

CC430F5133IRGZT Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the CC430F5133IRGZT is 24 MHz.
  • To configure the CC430F5133IRGZT for low power consumption, you can use the device's power modes, such as LPM3 or LPM4, which can reduce power consumption to as low as 1.1 μA. You can also use the device's built-in low-power peripherals, such as the low-power oscillator and the low-power UART.
  • Yes, the CC430F5133IRGZT can be used with an external crystal oscillator. The device has an internal oscillator that can be used, but an external crystal oscillator can provide better frequency stability and accuracy.
  • The CC430F5133IRGZT can be programmed using the IAR Embedded Workbench or the Code Composer Studio (CCS) integrated development environment (IDE) from Texas Instruments. You can also use the device's built-in bootloader to program the device.
  • The maximum transmission power of the CC430F5133IRGZT's radio is +14 dBm.
