The recommended crystal oscillator frequency for the CC430F6137IRGC is 26 MHz or 32.768 kHz. However, it's essential to note that the device can operate with other frequencies as well, but these two are the most commonly used and recommended by Texas Instruments.
To configure the CC430F6137IRGC for low power consumption, you can use the device's low-power modes, such as LPM3 or LPM4. Additionally, you can disable unnecessary peripherals, use a low-frequency clock, and optimize your code to reduce power consumption. It's also recommended to use the device's built-in power management features, such as the Power Management Module (PMM).
Yes, you can use the CC430F6137IRGC with an external antenna. However, it's essential to ensure that the antenna is designed for the frequency band you're operating in and that it's properly matched to the device's RF output. You may also need to add additional components, such as a balun or a matching network, to ensure optimal performance.
To implement a reliable wireless communication protocol using the CC430F6137IRGC, you can use a protocol such as IEEE 802.15.4 or Zigbee. You'll need to implement a robust protocol stack that includes features such as error checking, retransmission, and acknowledgement. Additionally, you should consider using a reliable data transmission method, such as frequency hopping or spread spectrum, to minimize interference and ensure reliable data transfer.
The maximum transmission range of the CC430F6137IRGC depends on various factors, such as the frequency band, transmission power, and environment. In general, the device can achieve a transmission range of up to 100 meters or more in ideal conditions. However, in practice, the range may be limited by factors such as obstacles, interference, and antenna design.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
CC430F6137IRGC Overview

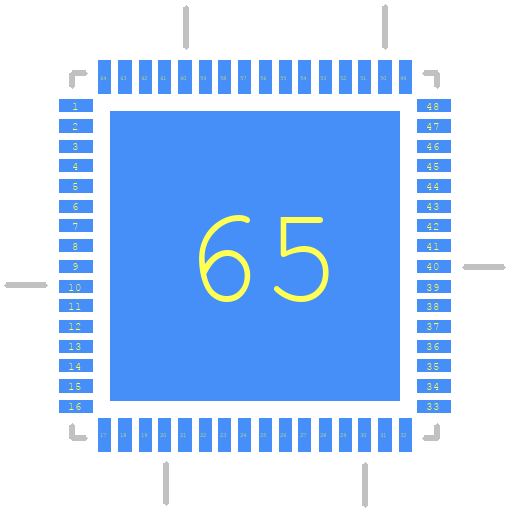

Use the download button to access the CC430F6137IRGC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC430,
or try a keyword search, such as Other Telecom ICs
