CC56-11GWA - Kingbright

Description: LED Displays & Accessories Quad Green 568nm Common Cathode

Download CC56-11GWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

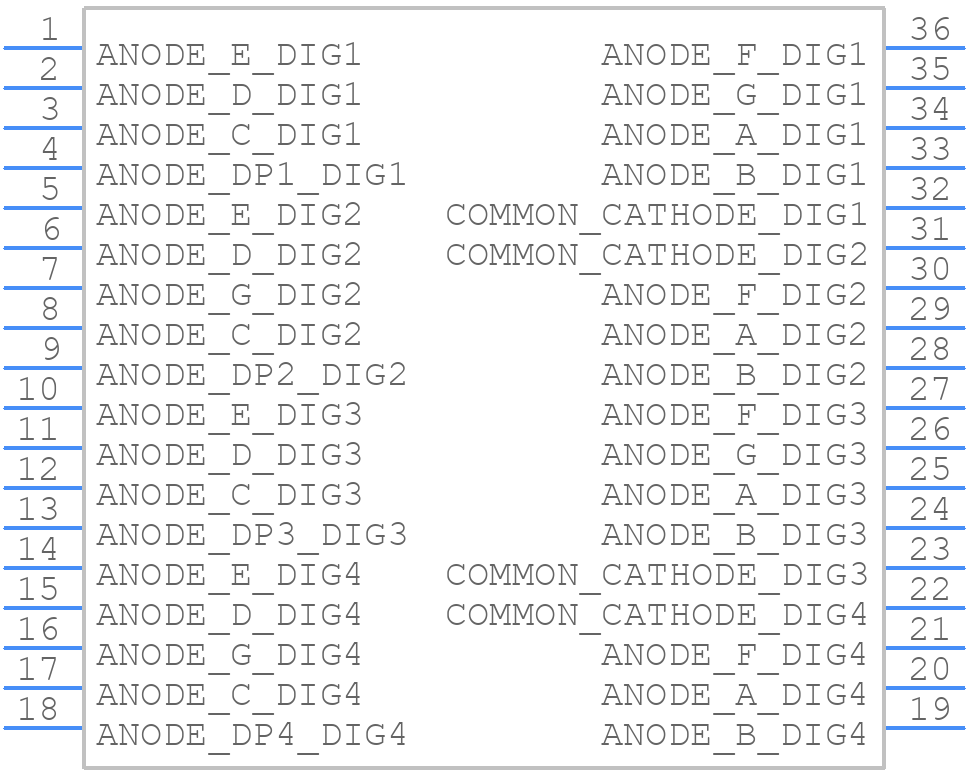

Symbol
CC56-11GWA - Kingbright - PCB symbol
click to zoom

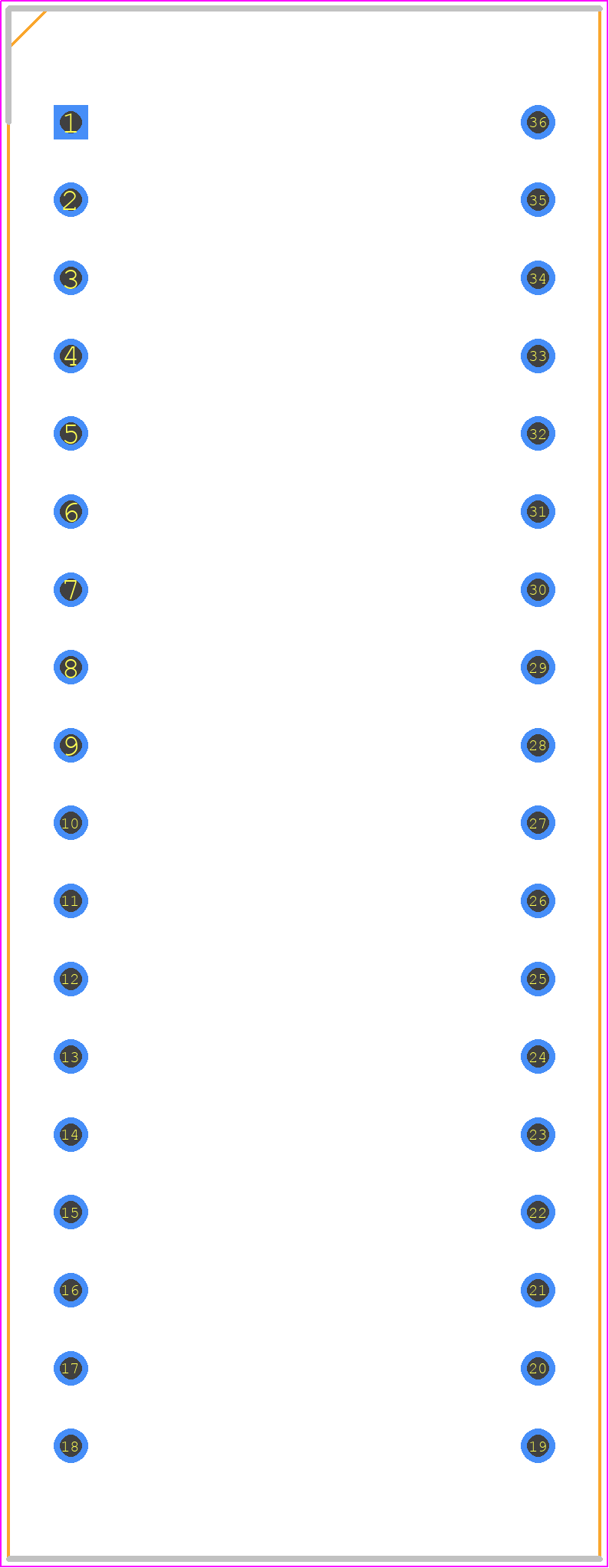

PCB Footprints
CC56-11GWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DIP-36
click to zoom
3D Models
CC56-11GWA - Kingbright - 3D model - Dual-In-Line Sockets - DIP-36
click to zoom

CC56-11GWA Details

  • Manufacturer Part Number:

    CC56-11GWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-36

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    GREEN

  • Color@Wavelength:

    Green

  • Configuration:

    COMMON CATHODE, 4 DIGITS WITH DECIMAL POINT

  • Display Height:

    14.2 mm

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    2.5 V

  • Number of Characters:

    4

  • Number of Functions:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    565 nm

CC56-11GWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for CC56-11GWA is -20°C to 60°C, with a relative humidity of 60% or less.
  • Yes, CC56-11GWA can be used in outdoor applications, but it's recommended to use a suitable enclosure or protective coating to protect the LED from environmental factors such as moisture, UV, and extreme temperatures.
  • The typical forward voltage of CC56-11GWA is around 3.2-3.4V, but it can vary depending on the operating current and temperature.
  • Yes, CC56-11GWA is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
  • The recommended operating current for CC56-11GWA is 20mA, but it can be driven up to 30mA for higher brightness, depending on the application requirements.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CC56-11GWA Overview

Use the download button to access the CC56-11GWA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC56-, or try a keyword search, such as LED Displays
