CC56-11SURKWA - Kingbright

Description: 7-Seg Display 4-Digit 14.2mm Red

Download CC56-11SURKWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

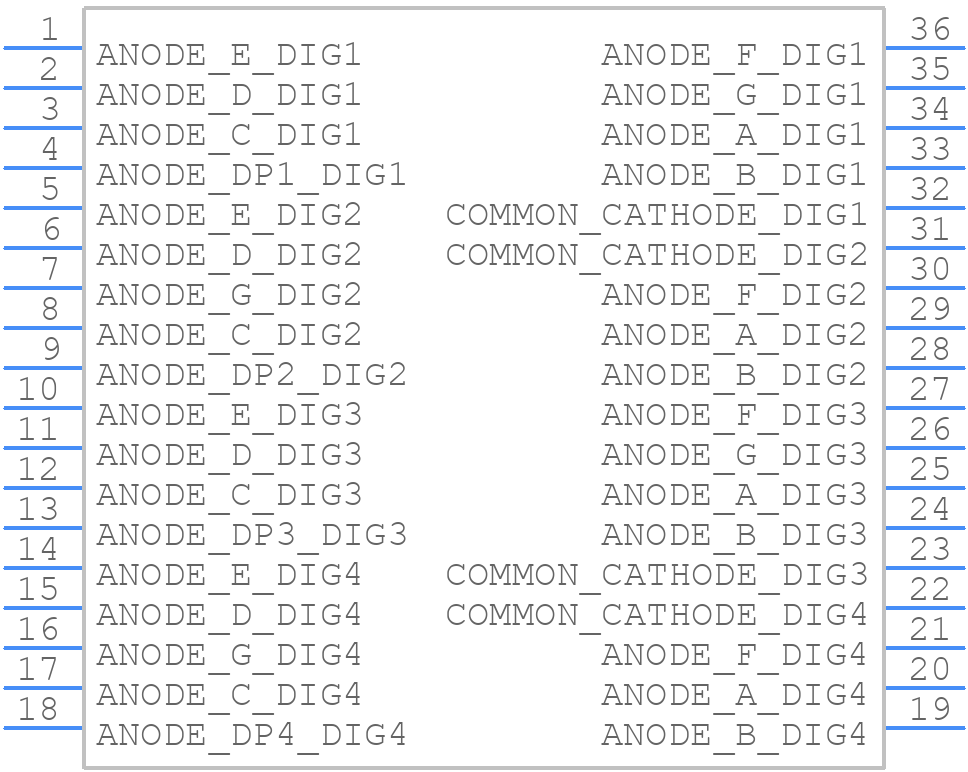

CC56-11SURKWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

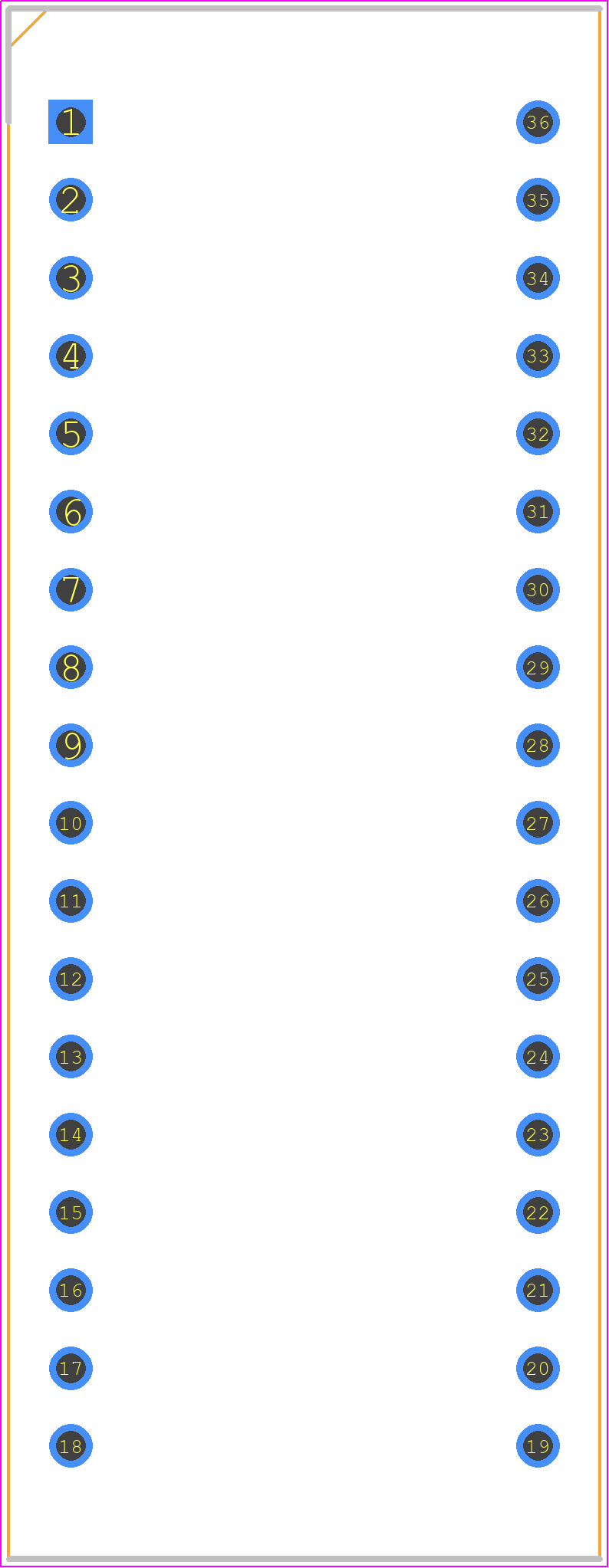

CC56-11SURKWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - CC56-11SURKWA
click to zoom

CC56-11SURKWA Details

  • Manufacturer Part Number:

    CC56-11SURKWA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-36

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    HYPER RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON CATHODE, 4 DIGITS WITH DECIMAL POINT

  • Display Height:

    14.2 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    CLOCK LED DISPLAY

CC56-11SURKWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for CC56-11SURKWA is -20°C to 60°C, with a relative humidity of 60% or less.
  • Yes, CC56-11SURKWA is suitable for outdoor applications due to its high luminous intensity and resistance to environmental factors such as moisture and UV radiation.
  • The typical forward voltage drop for CC56-11SURKWA is around 2.0-2.5V, but it can vary depending on the operating current and temperature.
  • Yes, CC56-11SURKWA is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
  • The maximum allowable current for CC56-11SURKWA is 30mA, but it's recommended to operate within the specified operating current range for optimal performance and lifespan.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CC56-11SURKWA Overview

Use the download button to access the CC56-11SURKWA schematic symbol and PCB footprint.
