CC56-12SURKWA - Kingbright

Description: Kingbright CC56-12SURKWA 4 Digit 7-Segment LED Display, CC Red 72 mcd RH DP 14.2mm

Download CC56-12SURKWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CC56-12SURKWA - Kingbright - PCB symbol
click to zoom

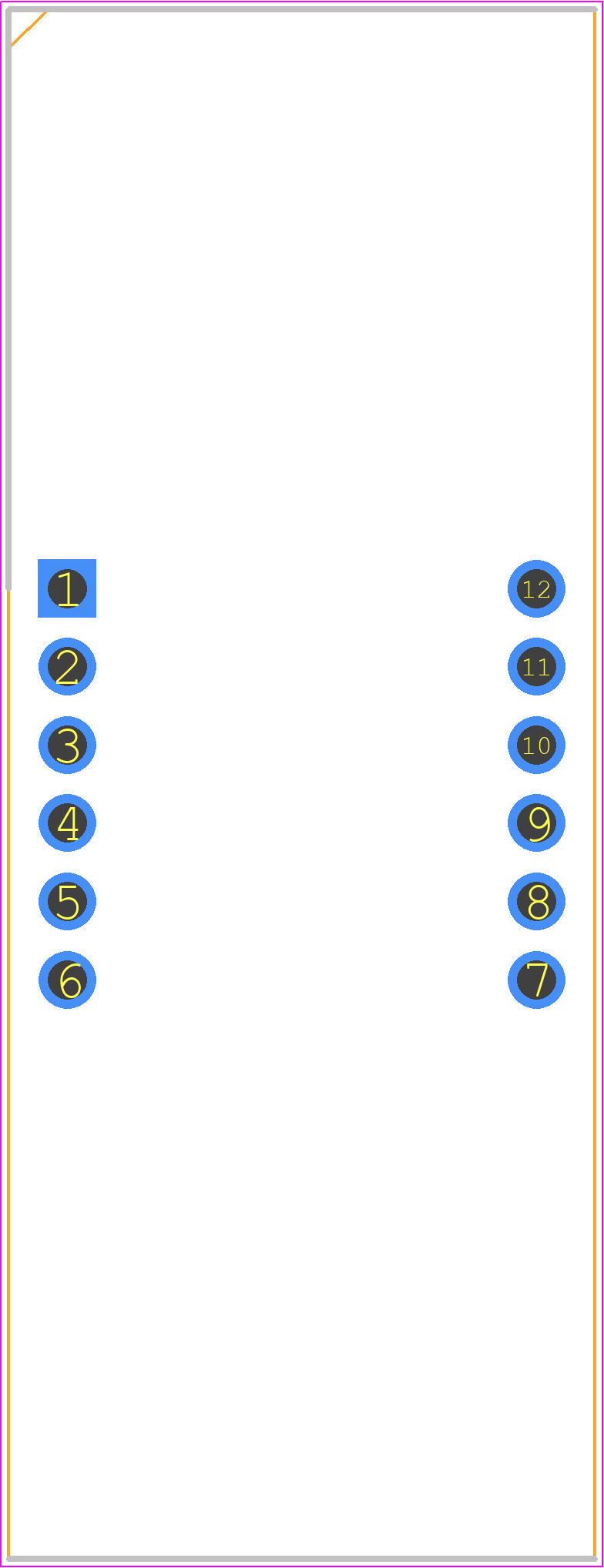

PCB Footprints
CC56-12SURKWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - CC56-12SURKWA
click to zoom
3D Models
CC56-12SURKWA - Kingbright - 3D model - Dual-In-Line Sockets - CC56-12SURKWA
click to zoom

CC56-12SURKWA Details

  • Manufacturer Part Number:

    CC56-12SURKWA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-12

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    HYPER RED

  • Configuration:

    COMMON CATHODE, 4 DIGITS WITH DECIMAL POINT

  • Display Height:

    14.2 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

CC56-12SURKWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for CC56-12SURKWA is -20°C to 60°C, with a relative humidity of 60% or less.
  • Yes, CC56-12SURKWA is suitable for outdoor applications due to its high luminous intensity and IP67 rating, which provides protection against dust and water ingress.
  • The typical forward voltage drop for CC56-12SURKWA is around 2.0-2.5V, depending on the operating current and temperature.
  • Yes, CC56-12SURKWA is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
  • The recommended operating current for CC56-12SURKWA is 20mA, with a maximum current rating of 30mA.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CC56-12SURKWA Overview

Use the download button to access the CC56-12SURKWA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC56-, or try a keyword search, such as LED Displays
