CCF551K50FKE36 - Vishay

Description: Vishay 1.5kΩ 0.25W Metal Film Resistor ±1% CCF551K50FKE36

Download CCF551K50FKE36 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CCF551K50FKE36 - Vishay - PCB symbol
click to zoom
PCB Footprints

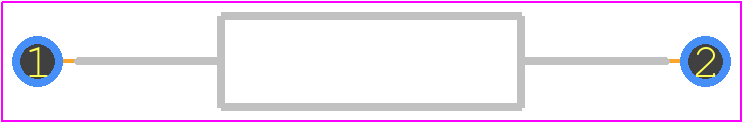

CCF551K50FKE36 - Vishay PCB footprint - Resistors, Axial Diameter Horizontal Mounting - Resistors, Axial Diameter Horizontal Mounting - CCF551K50FKE36-1
click to zoom
3D Models
CCF551K50FKE36 - Vishay - 3D model - Resistors, Axial Diameter Horizontal Mounting - CCF551K50FKE36-1
click to zoom

CCF551K50FKE36 Details

  • Manufacturer Part Number:

    CCF551K50FKE36

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    India

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.90

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    9

  • Additional Feature:

    DUAL RATED AS 0.25 WATTS, FLAME PROOF

  • Construction:

    Tubular

  • JESD-609 Code:

    e3

  • Lead Diameter:

    0.58 mm

  • Lead Length:

    27.94 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    165 °C

  • Operating Temperature-Min:

    -65 °C

  • Package Diameter:

    2.29 mm

  • Package Length:

    6.22 mm

  • Package Shape:

    TUBULAR PACKAGE

  • Package Style:

    Axial

  • Packing Method:

    TR

  • Rated Power Dissipation (P):

    0.5 W

  • Rated Temperature:

    70 °C

  • Resistance:

    1500 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Surface Mount:

    NO

  • Technology:

    METAL FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    WIRE

  • Tolerance:

    1%

  • Working Voltage:

    250 V

CCF551K50FKE36 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for CCF551K50FKE36 is 260°C (500°F) for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, CCF551K50FKE36 is designed to withstand high-vibration environments. It meets the vibration test requirements of IEC 60068-2-6, which includes sinusoidal vibration at 10-2000 Hz, 10 G peak acceleration, and 3 hours per axis.
  • Yes, CCF551K50FKE36 is suitable for use in high-altitude applications. It meets the requirements of MIL-PRF-123, which includes testing at altitudes up to 70,000 feet (21,336 meters).
  • Yes, CCF551K50FKE36 is designed to operate in humid environments. It meets the requirements of IEC 60068-2-78, which includes testing at 95% relative humidity and 40°C (104°F) for 1000 hours.
  • The ESR of CCF551K50FKE36 is typically around 10-20 mΩ at 100 kHz, but this value can vary depending on the frequency and operating conditions. Consult the datasheet or contact Vishay Intertechnologies for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CCF551K50FKE36 Overview

Use the download button to access the CCF551K50FKE36 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CCF55, or try a keyword search, such as Fixed Resistors
