CD-HD201 - Bourns

Description: BOURNS - CD-HD201 - DIODE, BRIDGE RECT, 1-PH, 100V, SMD

Download CD-HD201 Model

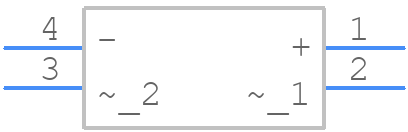

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

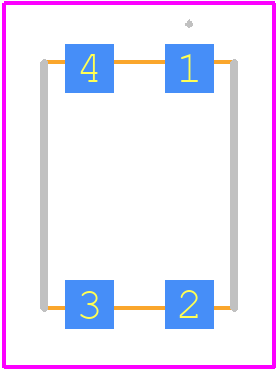

PCB Footprints
CD-HD201 - Bourns PCB footprint - Other - Other - CD-HD201-4
click to zoom
3D Models
CD-HD201 - Bourns  - 3D model - Other - CD-HD201-4
click to zoom

CD-HD201 Details

  • Manufacturer Part Number:

    CD-HD201

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    7.35

  • Additional Feature:

    LOW POWER LOSS

  • Configuration:

    BRIDGE, 4 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    BRIDGE RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.85 V

  • JESD-30 Code:

    R-PDSO-N4

  • JESD-609 Code:

    e3

  • Non-rep Pk Forward Current-Max:

    50 A

  • Number of Elements:

    4

  • Number of Phases:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Rep Pk Reverse Voltage-Max:

    100 V

  • Reverse Current-Max:

    200 µA

  • Reverse Test Voltage:

    100 V

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Finish:

    TIN

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL
