CONFIGURABLE AS NOR/OR/NAND/AND/OR-AND/OR-NAND/AND-NOR; EXPANDABLE
Family:
4000/14000/40000
JESD-30 Code:
R-GDIP-T16
JESD-609 Code:
e0
Length:
19.56 mm
Load Capacitance (CL):
50 pF
Logic IC Type:
LOGIC CIRCUIT
Max I(ol):
0.0015 A
Number of Functions:
1
Number of Inputs:
8
Number of Terminals:
16
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Output Characteristics:
3-STATE
Output Polarity:
TRUE
Package Body Material:
CERAMIC, GLASS-SEALED
Package Code:
DIP
Package Equivalence Code:
DIP16,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Packing Method:
TUBE
Prop. Delay@Nom-Sup:
600 ns
Qualification Status:
Not Qualified
Schmitt Trigger:
NO
Screening Level:
38535Q/M;38534H;883B
Seated Height-Max:
5.08 mm
Supply Voltage-Max (Vsup):
18 V
Supply Voltage-Min (Vsup):
3 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
NO
Technology:
CMOS
Temperature Grade:
MILITARY
Terminal Finish:
Tin/Lead (Sn/Pb)
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Width:
7.62 mm
CD4048BF3A Frequently Asked Questions (FAQs)
The recommended operating voltage range for CD4048BF3A is 4.5V to 15.5V, although it can operate up to 18V with reduced performance.
To ensure proper power-on and power-off, it's recommended to use a power-on reset (POR) circuit to guarantee a clean startup and shutdown. Additionally, a decoupling capacitor (e.g., 0.1uF) should be placed close to the VCC pin to filter out noise.
The maximum clock frequency that the CD4048BF3A can handle is 10MHz, although it can operate at higher frequencies with reduced performance and increased power consumption.
To prevent bus contention, the output enable (OE) pin should be connected to a logic signal that is asserted (low) only when the CD4048BF3A is intended to drive the output bus. When OE is high, the outputs are in a high-impedance state, allowing other devices to drive the bus.
To minimize noise and EMI, it's recommended to follow good PCB design practices, such as keeping the clock signal traces short and away from other signals, using a solid ground plane, and placing decoupling capacitors close to the VCC pin. Additionally, the CD4048BF3A should be placed near the center of the board to reduce radiation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CD4048BF3A Overview

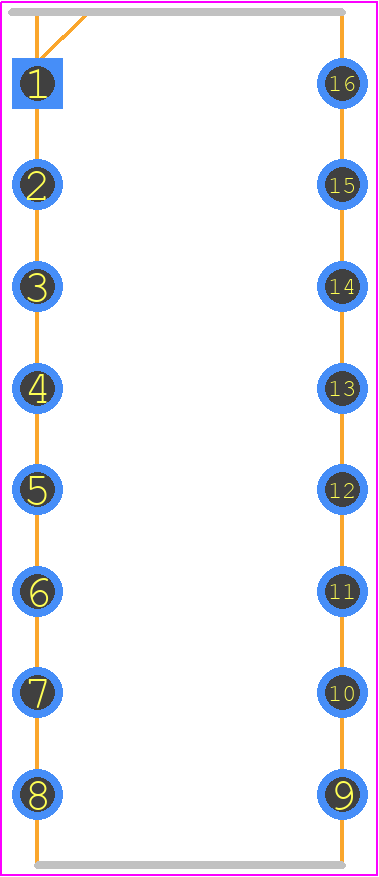

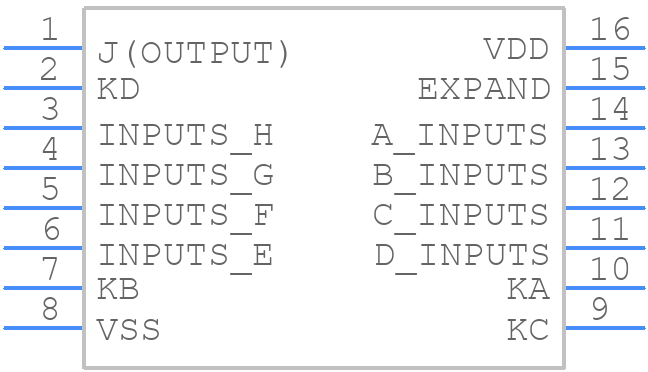

Use the download button to access the CD4048BF3A schematic symbol, PCB footprint, and 3D model.
