- Part Number CD4051BME4
- Manufacturer Texas Instruments
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - D (R-PDSO-G16)
- Released Date Nov 18, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
CD4051BME4 Details
-
Manufacturer Part Number:
CD4051BME4
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
GREEN, PLASTIC, MS-012AC, SOIC-16
-
Pin Count:
16
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Analog IC - Other Type:
SINGLE-ENDED MULTIPLEXER
CD4051BME4 Frequently Asked Questions (FAQs)
-
The maximum operating frequency of the CD4051BME4 is typically around 100 kHz, but it can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and application notes for more information.
-
To ensure proper signal integrity, it's essential to follow proper PCB layout and design practices, such as using short signal traces, minimizing noise and interference, and using adequate decoupling capacitors. Additionally, consider using a low-ESR capacitor on the VCC pin to reduce noise and improve overall performance.
-
The CD4051BME4 is designed to operate with a supply voltage range of 2V to 6V. However, it's recommended to use a 5V supply voltage for optimal performance. If you need to use a 3.3V supply voltage, ensure that the input signals are within the specified voltage range and that the output signals are compatible with your system's requirements.
-
The enable pin (EN) is an active-low input that enables or disables the analog switch. When EN is low, the switch is enabled, and when EN is high, the switch is disabled. Ensure that the EN pin is properly driven with a logic signal, and avoid floating the pin to prevent unwanted switching.
-
The maximum current rating of the CD4051BME4 is typically around 25mA per channel. However, it's essential to consult the datasheet and application notes for more information on current handling and thermal considerations.
Trust Checks
Community Provided
System Verified
Community Approved
CD4051BME4 Overview

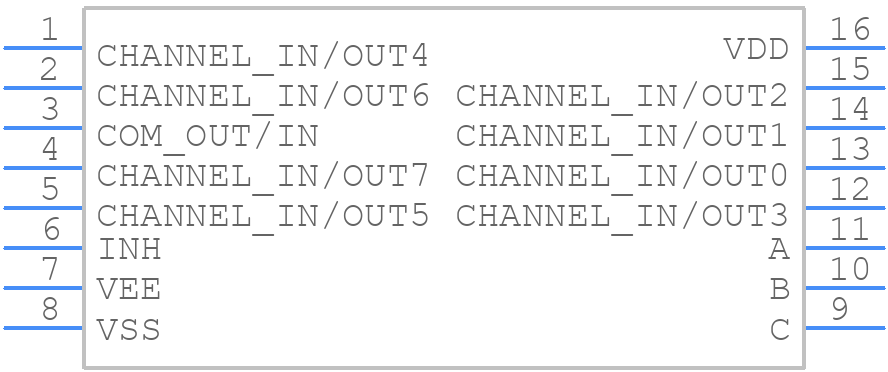

Use the download button to access the CD4051BME4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CD405,
or try a keyword search, such as Multiplexers or Switches
