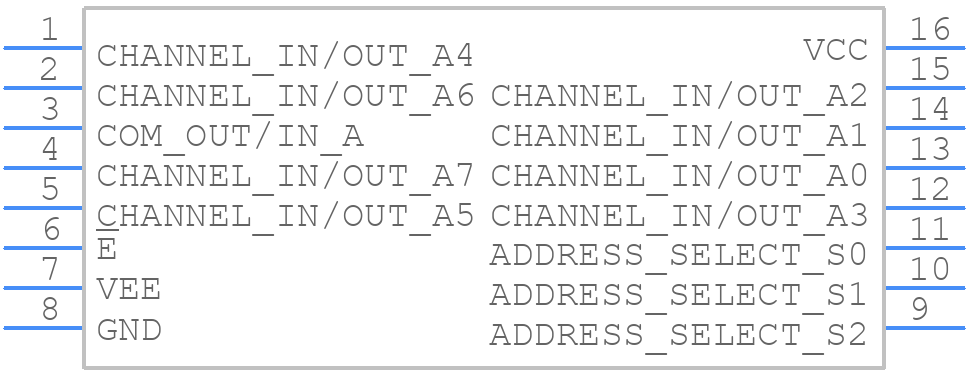

CD54HC4051F3A - Texas Instruments

CD54HC4051F3A Details

• Manufacturer Part Number:

  CD54HC4051F3A

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  DIP

• Pin Count:

  16

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  Configuration : 8:1

• Analog IC - Other Type:

  SINGLE-ENDED MULTIPLEXER

• Bandwidth-Nom:

  180 MHz

• Input Voltage-Max:

  6 V

• JESD-30 Code:

  R-GDIP-T16

• JESD-609 Code:

  e0

• Length:

  21.34 mm

• Number of Channels:

  1

• Number of Functions:

  1

• Number of Terminals:

  16

• Off-state Isolation-Nom:

  73 dB

• On-state Resistance Match-Nom:

  10 Ω

• On-state Resistance-Max (Ron):

  270 Ω

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output:

  COMMON OUTPUT

• Package Body Material:

  CERAMIC, GLASS-SEALED

• Package Code:

  DIP

• Package Equivalence Code:

  DIP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.08 mm

• Signal Current-Max:

  0.025 A

• Supply Voltage-Max (Vsup):

  10 V

• Supply Voltage-Min (Vsup):

  2 V

• Supply Voltage-Nom (Vsup):

  4.5 V

• Surface Mount:

  NO

• Switch-off Time-Max:

  340 ns

• Switch-on Time-Max:

  340 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Temperature Grade:

  MILITARY

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
