Part Image

CD74HC165M96 - Texas Instruments

Description: Shift Register Single 8-Bit 16-Pin SOIC Texas Instruments CD74HC165M96, 8-stage, Shift Register, Serial to Serial/Parallel, 2 ??? 6 V, 16-Pin SOIC

Download ECAD Model

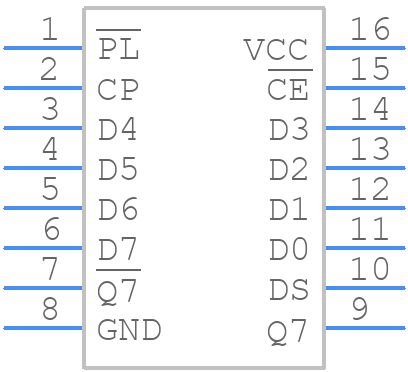

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

CD74HC165M96 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - d(r-pdso-g16)
click to zoom

3D Models

CD74HC165M96 - Texas Instruments  - 3D model - Small Outline Packages - d(r-pdso-g16)
click to zoom

CD74HC165M96 Details

  • Manufacturer Part Number:

    CD74HC165M96

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP, SOP16,.25

  • Pin Count:

    16

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Malaysia, Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • Risk Rank:

    0.73

  • Samacsys Modified On:

    2019-08-06 12:33:42

  • YTEOL:

    15

  • Additional Feature:

    SISO OPERATION ALSO AVAILABLE

  • Count Direction:

    RIGHT

  • Family:

    HC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    PARALLEL IN SERIAL OUT

  • Max Frequency@Nom-Sup:

    20000000 Hz

  • Max I(ol):

    0.0052 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supplies:

    2/6 V

  • Power Supply Current-Max (ICC):

    0.16 mA

  • Prop. Delay@Nom-Sup:

    32 ns

  • Propagation Delay (tpd):

    250 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    1.75 mm

  • Subcategory:

    Shift Registers

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    6 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    3.91 mm

  • fmax-Min:

    24 MHz

Risk Rank: Design Risk

CD74HC165M96 — Texas Instruments
2.2 - Low Design Risk
Design Risk Rank is determined by in-depth analysis across multiple factors, including part availability, functional equivalents, lifecycle and more. Learn more →

Risk Rank

Risk Rank is a proprietary algorithm Supplyframe has developed to quantify component risk using multiple data points. This ranking helps engineers and buyers determine whether alternates should be sought for parts that are deemed as high risk.

Risk Rank Example

Risk Rank is determined by a combination of factors such as product lifecycle status, price & inventory volatility, current inventory availability and much more. Even the availability of manufacturer specifications, part documentation such as datasheets and reference designs have an impact on determining the overall riskiness of a part.

The risk is characterized across three product phases:

  • Design
  • Production
  • Long Term

We focus on the Design Phase on Component Search Engine in our evaluation of Risk.

Design Phase

The design phase of a product is at the beginning of the product lifecycle. This is when engineers are doing analysis of components in the marketplace, determining which specifications are most important for their design and assessing the cost impact of using this particular component. While this is early in the product lifecycle, choices at this point can severely impact a product much later on when the product is being made. Additionally, this stage is the one furthest from a product being made, which is why we focus on metrics of stability over time when determining Design Risk.

Risk Rank Breakdown

Trust Checks

Community Provided
System Verified
Community Approved
Sponsored

CD74HC165M96 Overview

Use the download button to access the CD74HC165M96 schematic symbol, PCB footprint, and 3D model.
CD74HC165M96 by Texas Instruments has a score of
To find more CAD model downloads similar to this part, try a partial part number search, like CD74H, or try a keyword search, such as Shift Registers

Parts related to CD74HC165M96

Showing 0 results

CD74HC165M96 Alternates

Showing results

Image Part Number Design Risk Rank Model
Part Image SN74HC165DG4 Texas Instruments

8-Bit Parallel-Load Shift Registers 16-SOIC -40 to 125

Part Image 74HC165D,652 NXP Semiconductors

74HC(T)165 - 8-bit parallel-in/serial-out shift register SOP 16-Pin

Part Image CD54HC165M96 Texas Instruments

IC HC/UH SERIES, 8-BIT RIGHT PARALLEL IN SERIAL OUT SHIFT REGISTER, COMPLEMENTARY OUTPUT, PDSO16, PLASTIC, MS-012AC, SOIC-16, Shift Register

Part Image CD74HC165MG4 Texas Instruments

High Speed CMOS Logic 8-Bit Parallel-In/Serial-Out Shift Register 16-SOIC -55 to 125

Part Image DV74HC165D avg Semiconductors

Parallel In Serial Out, HC/UH Series, 8-Bit, Right Direction, Complementary Output, CMOS, PDSO16, PLASTIC, SOP-16

For a full list of alternate parts for CD74HC165M96, check out FindChips.com
