The maximum clock frequency for the CD74HC173M96 is 25 MHz, but it can vary depending on the operating voltage and temperature. It's recommended to check the timing diagrams and switching characteristics in the datasheet to ensure the desired clock frequency meets the device's requirements.
The asynchronous clear (CLR) input should be tied to VCC or GND through a pull-up or pull-down resistor, respectively, to prevent unwanted clearing of the counters. It's also recommended to use a debouncing circuit to ensure a clean CLR signal.
Yes, the CD74HC173M96 can be used as a binary counter by connecting the Q3 output to the CLK input, and using the CLR input to reset the counter. However, this configuration may not be suitable for all applications, and the datasheet should be consulted for specific implementation details.
A simple POR circuit can be implemented using a resistor, capacitor, and diode connected to the VCC pin. The capacitor should be chosen to ensure a minimum reset pulse width of 10 μs. The datasheet provides a recommended POR circuit diagram and component values.
To ensure proper noise immunity and signal integrity, it's recommended to use a low-impedance power supply, decouple the VCC pin with a 0.1 μF capacitor, and use series resistors on the input signals to reduce ringing and overshoot. Additionally, the PCB layout should be designed to minimize signal loops and crosstalk.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CD74HC173M96 Overview

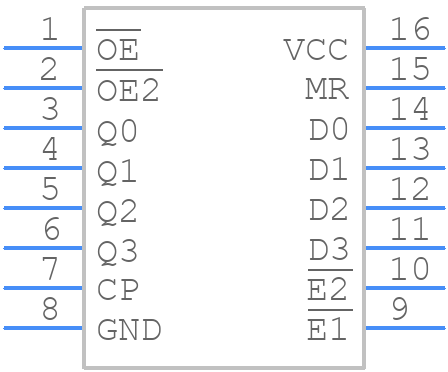

Use the download button to access the CD74HC173M96 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CD74H,
or try a keyword search, such as Bus Driver/Transceivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
