Part Image

CD74HC4046AM96G4 - Texas Instruments

Description: Phase Locked Loops - PLL Hi-Spd CMOS Logic PLL

Download CD74HC4046AM96G4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

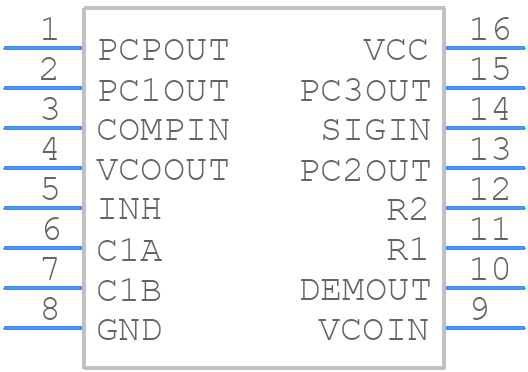

Symbol
CD74HC4046AM96G4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CD74HC4046AM96G4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G16)
click to zoom
3D Models
CD74HC4046AM96G4 - Texas Instruments - 3D model - Small Outline Packages - D (R-PDSO-G16)
click to zoom

CD74HC4046AM96G4 Details

  • Manufacturer Part Number:

    CD74HC4046AM96G4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    PHASE LOCKED LOOP

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.16 mA

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

CD74HC4046AM96G4 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the CD74HC4046AM96G4 is 2V to 6V, with a typical voltage of 5V.
  • To ensure the PLL is properly locked, the VCO (Voltage-Controlled Oscillator) input voltage should be within the specified range, and the loop filter components should be selected according to the datasheet recommendations. Additionally, the PLL lock detect output (LD) can be used to monitor the lock status.
  • The maximum clock frequency that the CD74HC4046AM96G4 can handle is 20 MHz, but this may vary depending on the specific application and operating conditions.
  • The loop filter component values can be calculated using the equations provided in the datasheet, or by using online calculators and simulation tools. The values should be chosen to ensure the PLL loop bandwidth is within the recommended range (typically 1 kHz to 10 kHz).
  • The VCO input voltage (VIN) is used to control the frequency of the VCO output. The VIN voltage determines the center frequency of the PLL, and should be adjusted to achieve the desired output frequency.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CD74HC4046AM96G4 Overview

Use the download button to access the CD74HC4046AM96G4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CD74H, or try a keyword search, such as PLL or Frequency Synthesis Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
