CD74HC4051EE4 - Texas Instruments

Description: Multiplexer Switch ICs Hi-Spd CMOS 8Ch Anlg Mltplxr/Demltplxr

Download CD74HC4051EE4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

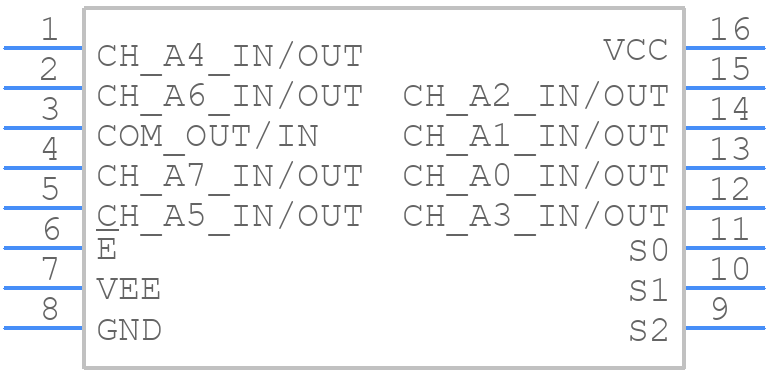

CD74HC4051EE4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CD74HC4051EE4 - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N (R-PDIP-T)
click to zoom
3D Models
CD74HC4051EE4 - Texas Instruments - 3D model - Dual-In-Line Packages - N (R-PDIP-T)
click to zoom

CD74HC4051EE4 Details

  • Manufacturer Part Number:

    CD74HC4051EE4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia, Mexico

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Configuration : 8:1

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • Bandwidth-Nom:

    200 MHz

  • Input Voltage-Max:

    6 V

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e4

  • Length:

    19.305 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    73 dB

  • On-state Resistance Match-Nom:

    10 Ω

  • On-state Resistance-Max (Ron):

    270 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Signal Current-Max:

    0.025 A

  • Supply Voltage-Max (Vsup):

    10 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    NO

  • Switch-off Time-Max:

    340 ns

  • Switch-on Time-Max:

    340 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

CD74HC4051EE4 Frequently Asked Questions (FAQs)

  • The maximum frequency of operation for the CD74HC4051EE4 is typically around 10 MHz, but it can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and application notes for more information.
  • To ensure proper power sequencing, it's recommended to power up the VCC pin before the logic inputs, and power down the VCC pin after the logic inputs. This helps prevent latch-up and ensures reliable operation.
  • The recommended operating voltage range for the CD74HC4051EE4 is 2V to 6V, with a typical operating voltage of 5V. Operating outside of this range may affect the device's performance and reliability.
  • The enable pin (EN) is an active-low input that enables or disables the analog switch. When EN is low, the switch is enabled, and when EN is high, the switch is disabled. It's recommended to tie the EN pin to a logic low or use a pull-down resistor to ensure the switch is enabled during normal operation.
  • The maximum analog signal frequency that can be switched by the CD74HC4051EE4 depends on the specific application and operating conditions. However, as a general rule, the device can handle analog signal frequencies up to 10 kHz without significant attenuation or distortion.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CD74HC4051EE4 Overview

Use the download button to access the CD74HC4051EE4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CD74H, or try a keyword search, such as Multiplexer/Demultiplexers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
