CD74HC4067EE4 - Texas Instruments

Description: Multiplexer Switch ICs Hi-Spd CMOS 16Ch Anl Mltplxr/Demltplxr

Download CD74HC4067EE4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

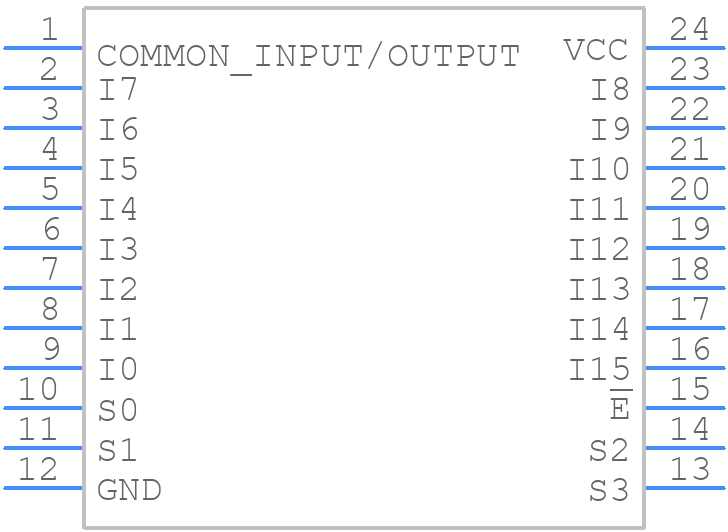

Symbol
CD74HC4067EE4 - Texas Instruments - PCB symbol
click to zoom

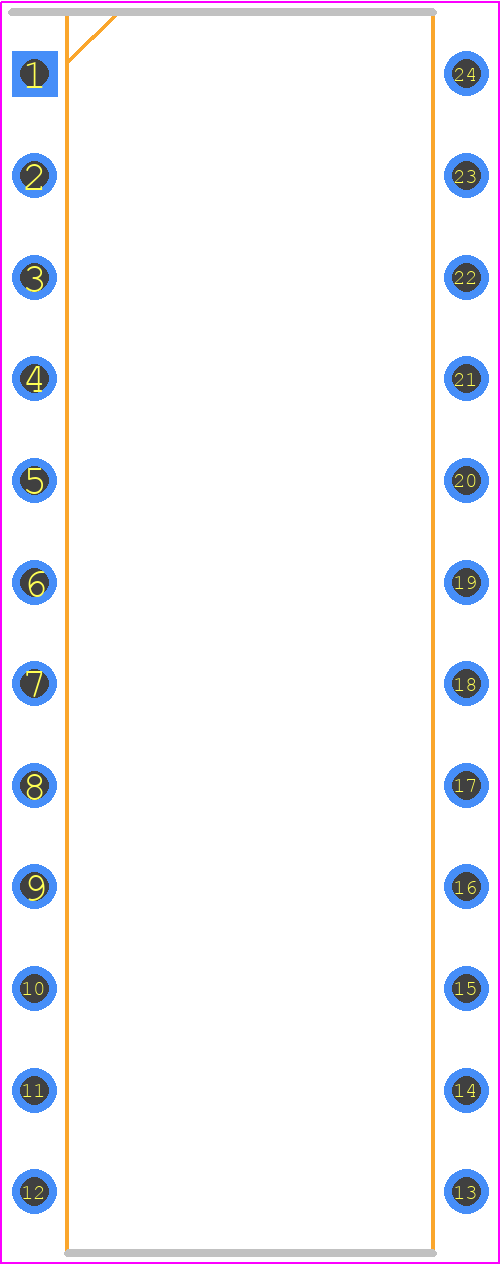

PCB Footprints
CD74HC4067EE4 - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N (R–PDIP–T24
click to zoom
3D Models
CD74HC4067EE4 - Texas Instruments - 3D model - Dual-In-Line Packages - N (R–PDIP–T24
click to zoom

CD74HC4067EE4 Details

  • Manufacturer Part Number:

    CD74HC4067EE4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    ROHS COMPLIANT, PLASTIC, DIP-24

  • Pin Count:

    24

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e4

  • Length:

    31 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Off-state Isolation-Nom:

    75 dB

  • On-state Resistance Match-Nom:

    10 Ω

  • On-state Resistance-Max (Ron):

    180 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    6.35 mm

  • Signal Current-Max:

    0.025 A

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    NO

  • Switch-off Time-Max:

    58 ns

  • Switch-on Time-Max:

    60 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    15.24 mm

CD74HC4067EE4 Frequently Asked Questions (FAQs)

  • The maximum frequency of operation for the CD74HC4067EE4 is typically around 10 MHz, but it can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and application notes for more information.
  • To ensure proper power sequencing, it's recommended to power up the VCC pin before the analog signal, and power down the VCC pin after the analog signal. This helps to prevent damage to the device and ensures proper operation.
  • The recommended operating voltage range for the CD74HC4067EE4 is 2V to 6V, with a typical operating voltage of 5V. Operating the device outside of this range may affect its performance and reliability.
  • To handle ESD protection, it's recommended to use proper handling and storage procedures, such as using anti-static wrist straps, mats, and bags. Additionally, the device has built-in ESD protection, but it's still important to follow proper handling procedures to prevent damage.
  • The typical propagation delay for the CD74HC4067EE4 is around 10-20 ns, depending on the specific application and operating conditions. This can affect the overall system performance and should be taken into account during design.
