CD74HC75PW - Texas Instruments

Description: High Speed CMOS Logic Dual 2-Bit Bistable Transparent Latches

Download CD74HC75PW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

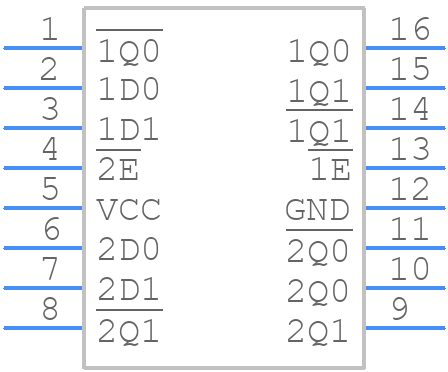

Symbol
CD74HC75PW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CD74HC75PW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0016A
click to zoom
3D Models
CD74HC75PW - Texas Instruments - 3D model - Small Outline Packages - PW0016A
click to zoom

CD74HC75PW Details

  • Manufacturer Part Number:

    CD74HC75PW

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    D LATCH

  • Max Frequency@Nom-Sup:

    28000000 Hz

  • Max I(ol):

    0.0052 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    2

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    0.08 mA

  • Prop. Delay@Nom-Sup:

    24 ns

  • Propagation Delay (tpd):

    195 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    HIGH LEVEL

  • Width:

    4.4 mm

  • fmax-Min:

    28 MHz

CD74HC75PW Frequently Asked Questions (FAQs)

  • The maximum clock frequency for CD74HC75PW is 25 MHz, but it can vary depending on the specific application and operating conditions. It's recommended to check the device's timing characteristics and perform thorough testing to ensure reliable operation.
  • It's recommended to power up the VCC pin before applying any input signals, and to power down the VCC pin after removing all input signals. This helps prevent unwanted latch-up or damage to the device. A power-up reset circuit can also be used to ensure proper initialization.
  • The recommended operating temperature range for CD74HC75PW is -40°C to 85°C. However, the device can operate beyond this range, but with reduced performance and reliability. It's essential to check the device's specifications and perform thorough testing for specific applications.
  • To ensure EMC with CD74HC75PW, it's recommended to follow proper PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using shielding or filtering components. Additionally, the device's input and output pins should be properly terminated and decoupled to reduce electromagnetic interference.
  • The maximum input voltage that can be applied to CD74HC75PW is 6V, but it's recommended to keep input voltages within the specified operating range (VCC + 0.5V) to ensure reliable operation and prevent damage to the device.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

CD74HC75PW Overview

Use the download button to access the CD74HC75PW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CD74H, or try a keyword search, such as FF/Latches

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
