CD74HCT4067MG4 - Texas Instruments

Description: Multiplexer Switch ICs Hi Spd CMOS 16-Ch Ana Multipl/Demult

Download CD74HCT4067MG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

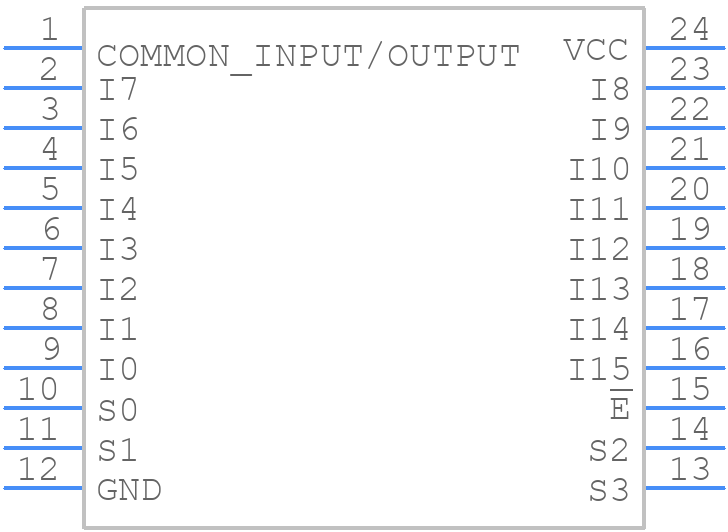

Symbol
CD74HCT4067MG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CD74HCT4067MG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G24)
click to zoom
3D Models
CD74HCT4067MG4 - Texas Instruments - 3D model - Small Outline Packages - DW (R-PDSO-G24)
click to zoom

CD74HCT4067MG4 Details

  • Manufacturer Part Number:

    CD74HCT4067MG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    24

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Configuration : 16:1

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    15.4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Off-state Isolation-Nom:

    75 dB

  • On-state Resistance Match-Nom:

    10 Ω

  • On-state Resistance-Max (Ron):

    270 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Signal Current-Max:

    0.02 A

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    87 ns

  • Switch-on Time-Max:

    90 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

CD74HCT4067MG4 Frequently Asked Questions (FAQs)

  • The maximum frequency of operation for the CD74HCT4067MG4 is typically around 10 MHz, but it can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and perform simulations or testing to determine the maximum frequency for a specific use case.
  • To ensure proper power sequencing, it's recommended to power up the VCC pin before applying any input signals, and to power down the VCC pin after removing all input signals. Additionally, it's a good idea to add a power-on reset circuit to ensure that the device is properly initialized during power-up.
  • The recommended operating voltage range for the CD74HCT4067MG4 is 4.5V to 5.5V, with a typical operating voltage of 5V. Operating the device outside of this range may affect its performance and reliability.
  • To handle thermal considerations, it's recommended to provide adequate heat sinking and to ensure good airflow around the device. The maximum junction temperature (TJ) for the CD74HCT4067MG4 is 150°C, and the device should be operated within a safe operating area to prevent overheating.
  • The maximum current rating for the CD74HCT4067MG4 is typically around 25 mA per channel, with a total device current rating of 100 mA. However, it's recommended to consult the datasheet and perform simulations or testing to determine the maximum current rating for a specific use case.
