The maximum frequency of operation for the CD74HCT4351E is 30 MHz, but it can vary depending on the specific application, supply voltage, and output load.
To prevent signal reflections, it's recommended to use a pull-up or pull-down resistor of 1 kΩ to 10 kΩ at the output of each buffer, and a series resistor of 22 Ω to 47 Ω to match the impedance of the transmission line.
To prevent latch-up and ensure proper operation, it's recommended to power up the VCC pin before applying any input signals, and to power down the VCC pin last when shutting down the device.
Yes, the CD74HCT4351E can be used as a level translator between 3.3V and 5V logic levels, but ensure that the input signals are within the recommended voltage range and that the output load is compatible with the translated voltage level.
When not in use, it's recommended to tie the enable inputs (1E, 2E, 3E, and 4E) to VCC or GND, depending on the desired enable state, to prevent unwanted switching and reduce power consumption.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CD74HCT4351E Overview

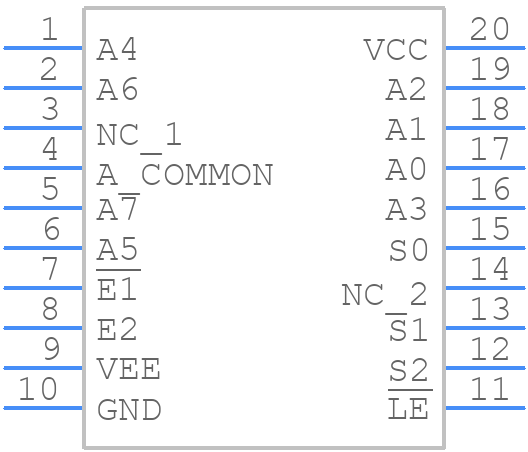

Use the download button to access the CD74HCT4351E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CD74H,
or try a keyword search, such as Multiplexers or Switches
