CDC2516DGGR - Texas Instruments

Description: 3.3-V Phase-Lock Loop Clock Driver With 3-State Outputs

Download CDC2516DGGR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

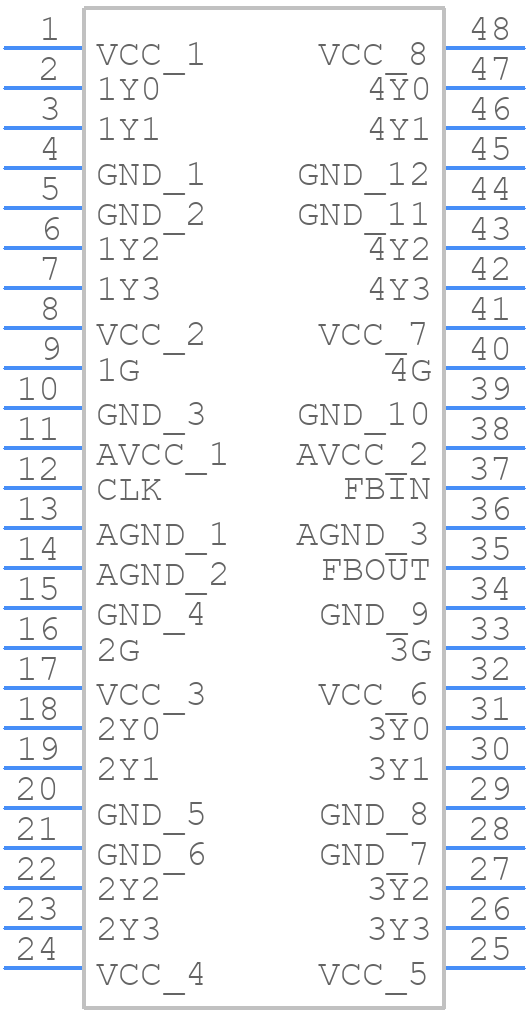

CDC2516DGGR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CDC2516DGGR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGG0048A
click to zoom
3D Models
CDC2516DGGR - Texas Instruments - 3D model - Small Outline Packages - DGG0048A
click to zoom

CDC2516DGGR Details

  • Manufacturer Part Number:

    CDC2516DGGR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-48

  • Pin Count:

    48

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    2516

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e4

  • Length:

    12.5 mm

  • Load Capacitance (CL):

    30 pF

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Max I(ol):

    0.012 A

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of True Outputs:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    3-STATE WITH SERIES RESISTOR

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP48,.3,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    0.02 mA

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.2 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.1 mm

  • fmax-Min:

    125 MHz

CDC2516DGGR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide for the CDC2516DGGR in their application note SLVAE03. It's essential to follow this guide to ensure proper signal integrity and minimize noise.
  • The CDC2516DGGR can be configured for a specific clock frequency by setting the appropriate values for the RSEL and FSEL pins. The datasheet provides a table to determine the correct settings for a given clock frequency. Additionally, Texas Instruments offers a clocking configurator tool to help with this process.
  • The CDC2516DGGR can tolerate up to 1.5 ps of input clock jitter. However, it's recommended to keep the input clock jitter as low as possible to ensure proper device operation and minimize the risk of errors.
  • Yes, the CDC2516DGGR can operate with clock signals that have a duty cycle other than 50%. However, the device's performance may be affected, and the maximum clock frequency may be reduced. It's recommended to consult the datasheet and application notes for more information on clock signal requirements.
  • Texas Instruments provides a troubleshooting guide for the CDC2516DGGR in their application note SLVAE04. This guide covers common issues and provides steps to identify and resolve problems. Additionally, engineers can use tools such as oscilloscopes and logic analyzers to debug the device.
