CDC318ADLRG4 - Texas Instruments

Description: Clock Drivers & Distribution 1 to 18 Clock

Download CDC318ADLRG4 Model

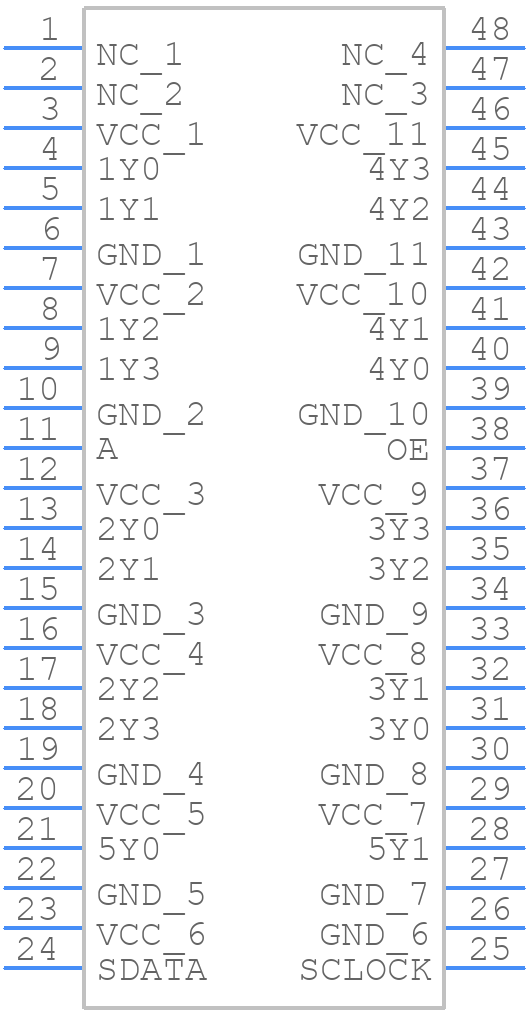

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

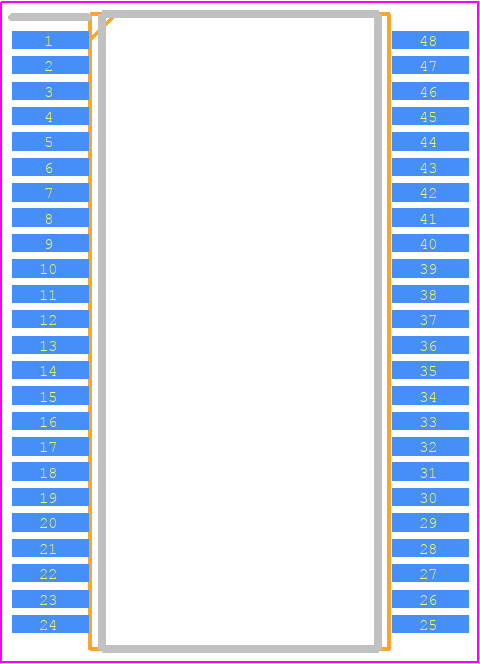

CDC318ADLRG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DL (R-PDSO-G48)
click to zoom
3D Models
CDC318ADLRG4 - Texas Instruments  - 3D model - Small Outline Packages - DL (R-PDSO-G48)
click to zoom

CDC318ADLRG4 Details

  • Manufacturer Part Number:

    CDC318ADLRG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    SOIC-48

  • Pin Count:

    48

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    318

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e4

  • Length:

    15.875 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.024 A

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of True Outputs:

    18

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP48,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    0.5 mA

  • Prop. Delay@Nom-Sup:

    4.5 ns

  • Propagation Delay (tpd):

    4.5 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.25 ns

  • Seated Height-Max:

    2.79 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.49 mm

  • fmax-Min:

    100 MHz

CDC318ADLRG4 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VCCA, and then the clock input. This ensures proper device operation and prevents potential latch-up conditions.
  • When using the CDC318ADLRG4 in a system with multiple clock domains, it's essential to ensure that the clock input is properly synchronized and buffered to prevent clock domain crossing issues. Use a clock buffer or a clock domain crossing circuit to synchronize the clock signal before applying it to the CDC318ADLRG4.
  • The maximum frequency of operation for the CDC318ADLRG4 is 100 MHz. However, the actual operating frequency may be limited by the system's clock distribution, signal integrity, and other factors. It's essential to verify the device's performance at the desired frequency through simulation and testing.
  • When implementing the CDC318ADLRG4 in a system with a high-speed interface, it's crucial to ensure that the device is properly terminated and matched to the transmission line. Use a termination resistor and a transmission line with a characteristic impedance of 50 ohms or 100 ohms, depending on the interface requirements.
  • To minimize signal integrity issues, it's recommended to follow a differential pair routing scheme, keeping the clock and data signals as close as possible to each other. Use a solid ground plane, and avoid routing signals under the device's BGA package. Also, ensure that the power and ground pins are properly decoupled and bypassed.
