The recommended power-up sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures proper initialization and prevents latch-up.
To handle metastability, use synchronous clock domains, ensure proper clock synchronization, and add metastability filters or synchronizers as needed. Additionally, consider using the CDC351IDW's built-in metastability resolution features, such as the asynchronous clock domain crossing (ACDC) circuit.
The CDC351IDW supports frequencies up to 200 MHz, but the actual maximum frequency depends on the specific application, clock domain crossing, and system design. Consult the datasheet and application notes for more information.
Yes, the CDC351IDW is designed to operate in multi-voltage systems. It can accept input signals from different voltage domains, but ensure proper voltage translation and level shifting to prevent damage or incorrect operation.
To implement CDC, use the CDC351IDW's built-in CDC circuits, which include asynchronous clock domain crossing (ACDC) and synchronous clock domain crossing (SCDC) modes. Consult the datasheet and application notes for specific implementation guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CDC351IDW Overview

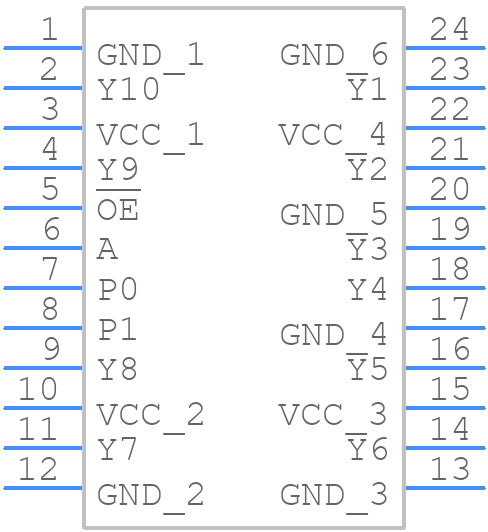

Use the download button to access the CDC351IDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDC35,
or try a keyword search, such as Clock Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
