The recommended power-up sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures proper initialization and prevents potential latch-up conditions.
When using the CDC906PW in a PLL application, it's essential to ensure the clock signal is clean and stable. Use a clock buffer or a dedicated clock generator to provide a low-jitter clock signal, and consider adding a clock filter to remove any high-frequency noise.
While the datasheet specifies a maximum frequency of 100 MHz, the actual frequency limit may vary depending on the specific application, board layout, and signal integrity. As a general rule, it's recommended to derate the frequency by 10-20% to ensure reliable operation.
To minimize power consumption, ensure that the input signals are properly terminated, and use a low-power clock source. Additionally, consider using a lower supply voltage (VCC) and reducing the output load capacitance. You can also use the device's built-in power-down mode to further reduce power consumption when not in use.
When designing the PCB layout, ensure that the clock signal traces are short, direct, and well-shielded to minimize signal degradation and noise coupling. Keep the power supply traces separate from the signal traces, and use a solid ground plane to reduce electromagnetic interference (EMI).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CDC906PW Overview

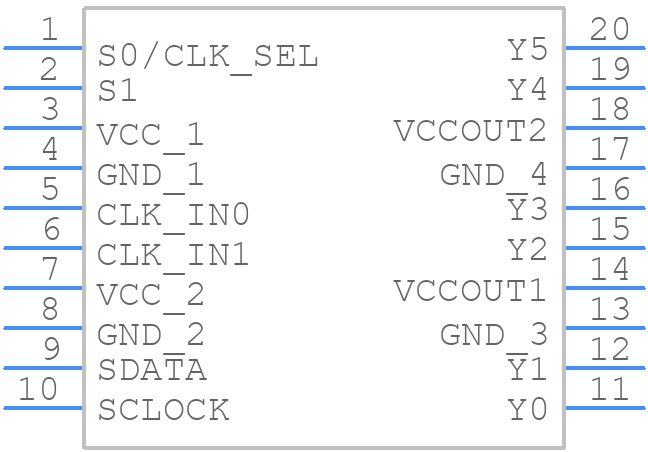

Use the download button to access the CDC906PW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDC90,
or try a keyword search, such as Clock Generators
