Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors close to the device.
Ensure that the power supply voltage is within the recommended range (1.8V to 3.6V), and use decoupling capacitors (e.g., 0.1uF and 10uF) close to the device's power pins. Also, make sure to follow the recommended power-up sequence and voltage ramp rates.
The CDCE813R02TPWRQ1 can support clock frequencies up to 200 MHz, but the actual maximum frequency may depend on the specific application, PCB layout, and output load. It's recommended to consult the datasheet and perform simulations or testing to determine the maximum frequency for a specific design.
The CDCE813R02TPWRQ1 has a programmable clock output frequency, which can be set using the device's control pins (S0, S1, and S2). Consult the datasheet for the specific pin configurations and frequency settings. You can also use Texas Instruments' Clock Design Tool to help with frequency configuration.
The typical power consumption of the CDCE813R02TPWRQ1 depends on the clock frequency, output load, and operating conditions. According to the datasheet, the typical power consumption is around 15mA at 1.8V and 100MHz clock frequency. However, it's recommended to consult the datasheet and perform power consumption calculations or measurements for a specific design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CDCE813R02TPWRQ1 Overview

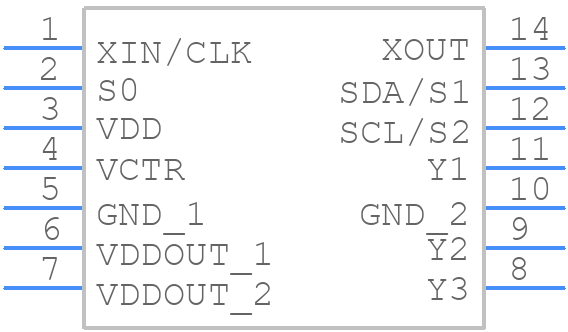

Use the download button to access the CDCE813R02TPWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDCE8,
or try a keyword search, such as Clock Generators
