CDCE906PW - Texas Instruments

Description: PROGRAMMABLE 3-PLL CLOCK SYNTHESIZER / MULTIPLIER / DIVIDER

Download CDCE906PW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

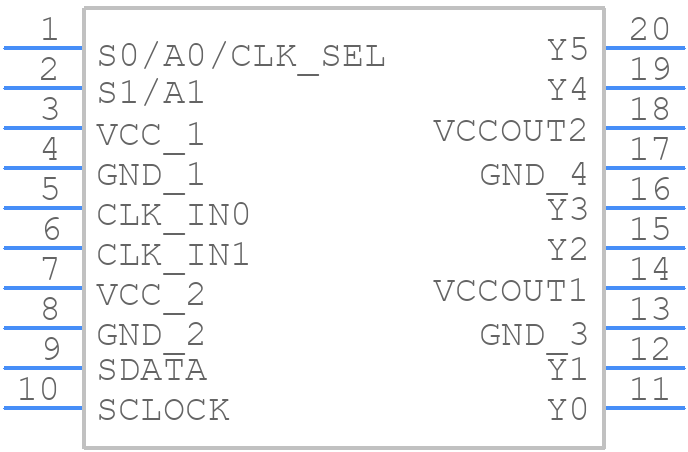

Symbol
CDCE906PW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CDCE906PW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G20)
click to zoom
3D Models
CDCE906PW - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G20)
click to zoom

CDCE906PW Details

  • Manufacturer Part Number:

    CDCE906PW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Output Clock Frequency-Max:

    167 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    167 MHz

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    115 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, VIDEO

CDCE906PW Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VDD, and then the input clock signal. This ensures proper device operation and prevents latch-up.
  • The loop bandwidth can be optimized by adjusting the values of the RFB and CFB components. A higher RFB value increases the loop bandwidth, while a higher CFB value decreases it. The optimal values depend on the specific application requirements and can be determined through simulation and experimentation.
  • The maximum input clock frequency that the CDCE906PW can handle is 250 MHz. However, the device can also be used with higher input frequencies by using an external divider or a frequency multiplier.
  • Proper bypassing and decoupling of the CDCE906PW involves placing 0.1 μF and 10 μF capacitors between VCC and GND, and VDD and GND, respectively. Additionally, a 1 μF capacitor should be placed between the output of the voltage regulator and the input of the CDCE906PW.
  • The maximum output frequency that the CDCE906PW can generate is 1.5 GHz. However, the actual output frequency range depends on the input clock frequency, the PLL multiplication factor, and the output divider ratio.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CDCE906PW Overview

Use the download button to access the CDCE906PW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDCE9, or try a keyword search, such as Clock Generators

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
