Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors to ensure optimal performance.
The CDCE906PWR is a highly configurable device. To configure it for a specific clock frequency, you'll need to use the TI Clock Design Tool or the CDCE906PWR Evaluation Module to generate the required register settings and clock configuration files.
The CDCE906PWR can handle input clock frequencies up to 350 MHz. However, the maximum input frequency may vary depending on the specific configuration and application. It's essential to consult the datasheet and application notes for specific guidance.
To ensure proper power and decoupling, follow the recommended power supply and decoupling capacitor values and placement guidelines provided in the datasheet. Additionally, use a low-ESR capacitor (e.g., 0.1 μF) as close as possible to the VCC pin.
The CDCE906PWR has a maximum junction temperature of 150°C. To ensure reliable operation, ensure good airflow, use a heat sink if necessary, and follow the thermal design guidelines provided in the datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CDCE906PWR Overview

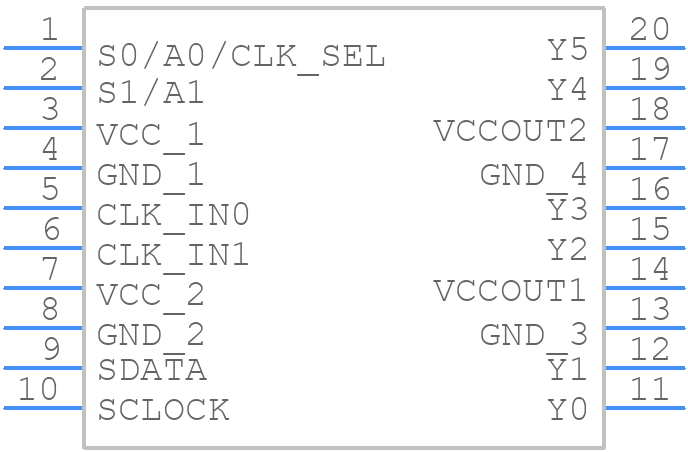

Use the download button to access the CDCE906PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDCE9,
or try a keyword search, such as Clock Generators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
