CDCE913PWRG4 - Texas Instruments

Description: Clock Synthesizer/Jitter Cleaner Programmable 1-PLL VCXO Clock Synth

Download CDCE913PWRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

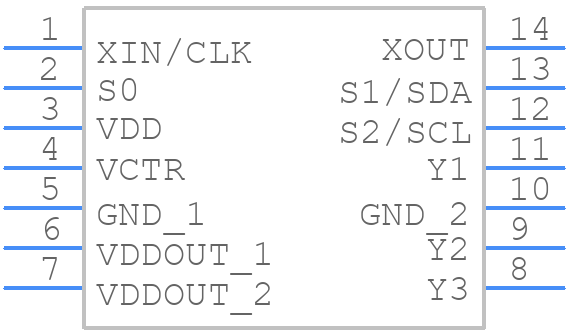

CDCE913PWRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CDCE913PWRG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G14)
click to zoom
3D Models
CDCE913PWRG4 - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G14)
click to zoom

CDCE913PWRG4 Details

  • Manufacturer Part Number:

    CDCE913PWRG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    230 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    32 MHz

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

CDCE913PWRG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the CDCE913PWRG4 evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The CDCE913PWRG4 output voltage can be configured using the I2C interface to program the internal voltage regulator. The device has a programmable output voltage range of 0.5V to 3.3V, and the specific configuration depends on the application requirements. Refer to the datasheet and programming guide for more information.
  • The CDCE913PWRG4 has a maximum input voltage rating of 5.5V, but it is recommended to operate the device within the specified input voltage range of 3.135V to 5.5V to ensure optimal performance and reliability.
  • The CDCE913PWRG4 has a power-on reset (POR) circuit that ensures the device is properly powered up and initialized. The POR circuit monitors the input voltage and releases the reset signal when the input voltage reaches a minimum threshold. Additionally, the device has a programmable startup delay to ensure that the output voltage is stable before the device is enabled.
  • The CDCE913PWRG4 has a thermal pad on the bottom of the package that should be connected to a thermal ground plane on the PCB to dissipate heat. Additionally, the device has a thermal shutdown feature that disables the output when the junction temperature exceeds 150°C to prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CDCE913PWRG4 Overview

Use the download button to access the CDCE913PWRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDCE9, or try a keyword search, such as Clock Generators

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
