Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors to ensure optimal performance.
The CDCE937PWR has a programmable output voltage range of 0.5V to 3.3V. To choose the correct output voltage, consider the voltage requirements of your load, the input voltage, and the desired output current. You can use the datasheet's voltage selection table or consult with a TI representative for guidance.
The CDCE937PWR has a maximum input voltage rating of 5.5V. Exceeding this voltage can damage the device. Ensure that your input voltage is within the recommended range to ensure reliable operation.
To ensure stability and reliability, follow the recommended operating conditions, use a suitable input capacitor, and ensure the output capacitor is within the recommended range. Additionally, consider using a soft-start circuit to prevent inrush currents during power-up.
The CDCE937PWR has an operating temperature range of -40°C to 85°C. While it can operate in high-temperature environments, it's essential to consider the device's thermal characteristics and ensure proper heat dissipation to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CDCE937PWR Overview

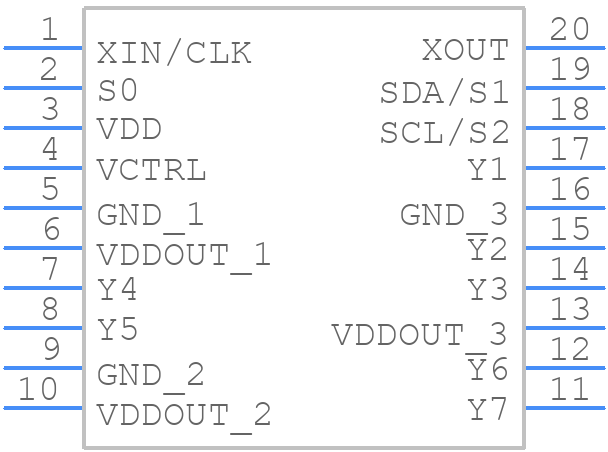

Use the download button to access the CDCE937PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDCE9,
or try a keyword search, such as Clock Generators
