CDCE937QPWRQ1 - Texas Instruments

Description: Automotive Catalog Programmable 3-PLL VCXO Clock Synthesizer with 2.5-V or 3.3-V LVCMOS Outputs

Download CDCE937QPWRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

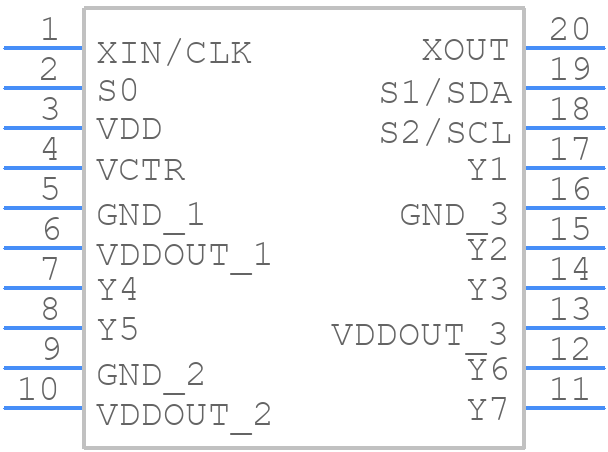

CDCE937QPWRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CDCE937QPWRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0020A
click to zoom
3D Models
CDCE937QPWRQ1 - Texas Instruments - 3D model - Small Outline Packages - PW0020A
click to zoom

CDCE937QPWRQ1 Details

  • Manufacturer Part Number:

    CDCE937QPWRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    230 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    160 MHz

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, VIDEO

CDCE937QPWRQ1 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VDD, and then the input clock signal. This ensures proper device initialization and prevents potential latch-up conditions.
  • Use the TI Clock Design Tool or the CDCE937QPWRQ1 datasheet's configuration tables to determine the required register settings for your desired output frequency. You can also use the device's internal PLL to generate a wide range of frequencies.
  • The CDCE937QPWRQ1 can accept input clock frequencies up to 200 MHz. However, the maximum input frequency may vary depending on the specific application and output frequency requirements.
  • Assert the PD pin (Pin 24) low to put the device in power-down mode. This reduces the device's power consumption to a minimum. You can also use the device's built-in power-saving features, such as the auto-power-down feature, to minimize power consumption.
  • Follow the recommended layout and routing guidelines in the CDCE937QPWRQ1 datasheet, including using a solid ground plane, minimizing trace lengths, and avoiding signal routing near the device's PLL and VCO circuits.
