CDCE949PWR - Texas Instruments

Description: Programmable 4-PLL VCXO Clock Synthesizer with 2.5V or 3.3V LVCMOS Outputs

Download CDCE949PWR Model

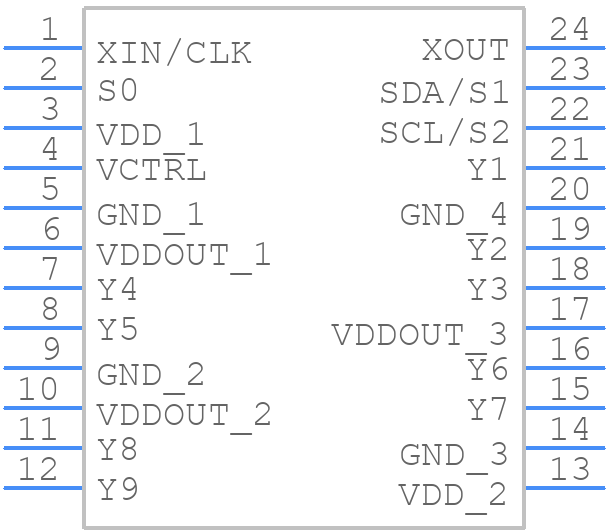

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CDCE949PWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0024A
click to zoom
3D Models
CDCE949PWR - Texas Instruments  - 3D model - Small Outline Packages - PW0024A
click to zoom

CDCE949PWR Details

  • Manufacturer Part Number:

    CDCE949PWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    230 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    32 MHz

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    38 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.3 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, VIDEO

CDCE949PWR Frequently Asked Questions (FAQs)

  • A good PCB layout for the CDCE949PWR involves keeping the clock input traces short and away from noisy signals, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To choose the correct output frequency, consider the requirements of your system, such as the clock frequency of your processor or other components. The CDCE949PWR can generate frequencies from 10 kHz to 230 MHz, so select a frequency that meets your system's needs. You can use the device's internal PLL or external clock sources to generate the desired frequency.
  • The CDCE949PWR can handle input clock frequencies up to 230 MHz. However, the maximum input frequency may be limited by the specific application and the quality of the input clock signal.
  • To configure the CDCE949PWR for a specific output frequency, use the device's internal PLL or external clock sources. You can use the device's control pins to select the desired output frequency or use the device's I2C interface to program the output frequency. Consult the datasheet for specific configuration details.
  • The power consumption of the CDCE949PWR depends on the output frequency, load capacitance, and other factors. To minimize power consumption, use the lowest possible output frequency, minimize load capacitance, and use the device's power-down mode when not in use. Additionally, consider using a low-power mode or dynamic voltage and frequency scaling to reduce power consumption.
