CDCE949QPWRQ1 - Texas Instruments

Description: Programmable 4-PLL VCXO Clock Synthesizer with 2.5V or 3.3V LVCMOS Outputs

Download CDCE949QPWRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

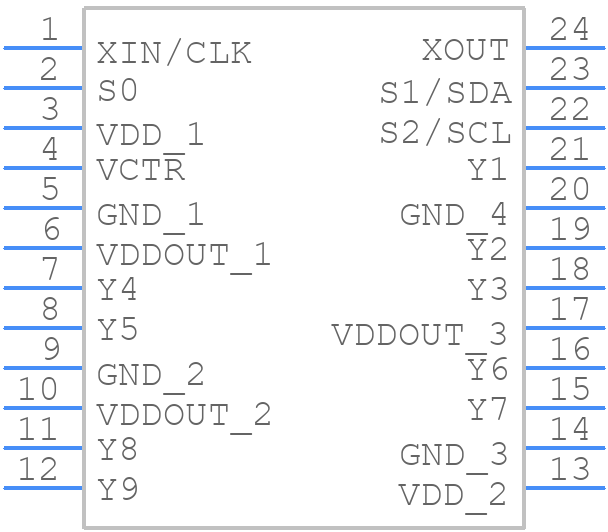

CDCE949QPWRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CDCE949QPWRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0024A
click to zoom
3D Models
CDCE949QPWRQ1 - Texas Instruments - 3D model - Small Outline Packages - PW0024A
click to zoom

CDCE949QPWRQ1 Details

  • Manufacturer Part Number:

    CDCE949QPWRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    230 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    32 MHz

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, VIDEO

CDCE949QPWRQ1 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VDD, and then the input clock signal. This ensures proper device operation and prevents potential latch-up conditions.
  • To optimize for low jitter performance, ensure that the input clock signal has a high signal-to-noise ratio, use a low-jitter clock source, and minimize the number of clock domain crossings. Additionally, optimize the PCB layout to reduce noise and ensure proper decoupling.
  • The maximum frequency of operation for the CDCE949QPWRQ1 is 200 MHz. However, the actual operating frequency may be limited by the specific application and system requirements.
  • The CDCE949QPWRQ1 can be configured for a specific output frequency by programming the device's internal registers using the I2C interface. The specific configuration will depend on the desired output frequency and the input clock frequency.
  • The typical power consumption of the CDCE949QPWRQ1 is around 30-40 mA, depending on the operating frequency and output configuration. However, the actual power consumption may vary depending on the specific application and system requirements.
