CDCEL949PW - Texas Instruments

Description: Programmable 4-PLL VCXO Clock Synthesizer with 1.8-V LVCMOS Outputs

Download CDCEL949PW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

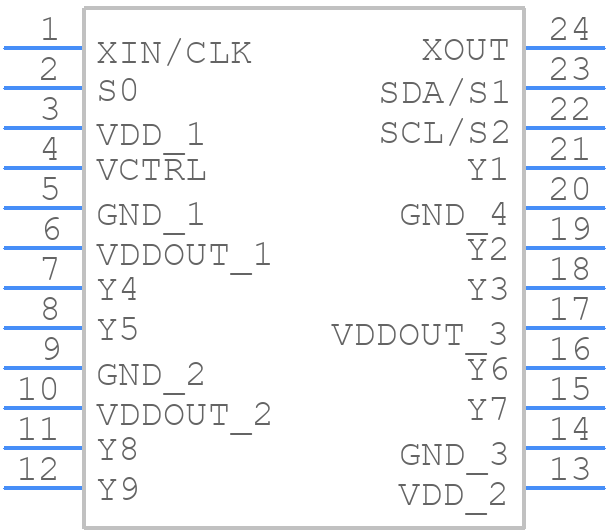

CDCEL949PW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CDCEL949PW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0024A
click to zoom
3D Models
CDCEL949PW - Texas Instruments - 3D model - Small Outline Packages - PW0024A
click to zoom

CDCEL949PW Details

  • Manufacturer Part Number:

    CDCEL949PW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    230 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    32 MHz

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    38 mA

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, VIDEO

CDCEL949PW Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, use a common mode choke or ferrite bead to filter the input power and reduce EMI.
  • The CDCEL949PW requires a single 3.3V or 5V power supply. Ensure the power supply is stable and has a low noise floor. Power sequencing is not critical, but it's recommended to power the device after the input clock is stable.
  • The CDCEL949PW can handle clock frequencies up to 200 MHz. However, the maximum frequency may vary depending on the specific application and output load.
  • The CDCEL949PW can be configured using the SEL0-SEL2 pins to select one of 16 possible output frequencies. The output frequency range is from 25 MHz to 200 MHz. The device can also be used in a voltage-controlled oscillator (VCO) mode to generate frequencies outside of the predefined range.
  • The CDCEL949PW has a typical jitter performance of 150 fs RMS. Jitter can affect the system by causing errors in data transmission, increasing bit error rates, and reducing the overall system reliability.
