Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the power and ground planes separate, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
To ensure accurate clock output frequency, make sure to use a high-quality crystal oscillator, follow the recommended crystal load capacitance values, and minimize noise and jitter on the clock input. Additionally, consider using a clock conditioning circuit to filter out noise and improve clock signal quality.
The CDCEL949PWR is rated for operation from -40°C to 85°C. However, it's essential to consider the operating temperature range of the specific application and ensure that the device is properly cooled or heat-sinked to prevent overheating.
The CDCEL949PWR is designed to operate from a 3.3V or 2.5V power supply. While it's possible to use a different voltage supply, it's not recommended as it may affect the device's performance, accuracy, and reliability. Consult the datasheet and Texas Instruments' application notes for specific guidance on voltage supply requirements.
To troubleshoot issues with the CDCEL949PWR, start by reviewing the datasheet and application notes, checking the power supply voltage, clock input signal, and output frequency. Use oscilloscopes and logic analyzers to debug the signal paths and identify potential issues. Consult Texas Instruments' technical support resources and online forums for additional guidance and troubleshooting tips.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CDCEL949PWR Overview

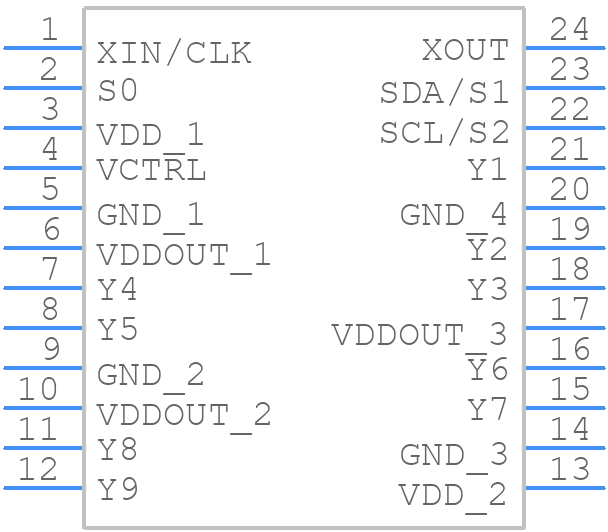

Use the download button to access the CDCEL949PWR schematic symbol, PCB footprint, and 3D model.
