Texas Instruments provides a recommended layout and routing guide in their application note SLVAE03, which includes guidelines for PCB design, component placement, and signal routing to ensure optimal performance and minimize noise.
The CDCFR83DBQRG4 can be configured for different clock frequencies by adjusting the values of the external resistors R1 and R2, which set the clock frequency range. Refer to the datasheet's 'Clock Frequency Selection' section for more information.
The CDCFR83DBQRG4 can handle input clock frequencies up to 250 MHz, but the maximum frequency may vary depending on the specific application and system requirements. It's recommended to consult the datasheet and perform thorough testing to ensure the device meets the required specifications.
Proper power supply decoupling is crucial for the CDCFR83DBQRG4. Use a low-ESR capacitor (e.g., 0.1 μF) connected between the VCC and GND pins, and place it as close to the device as possible. Additionally, ensure a stable power supply voltage within the recommended range (1.8 V to 3.6 V) and follow the recommended power-up sequence.
For high-reliability or high-temperature applications, consider the device's operating temperature range (-40°C to 125°C), ensure proper thermal management, and follow Texas Instruments' guidelines for high-reliability design and manufacturing. Additionally, consult the datasheet's 'Reliability' and 'Operating Ratings' sections for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CDCFR83DBQRG4 Overview

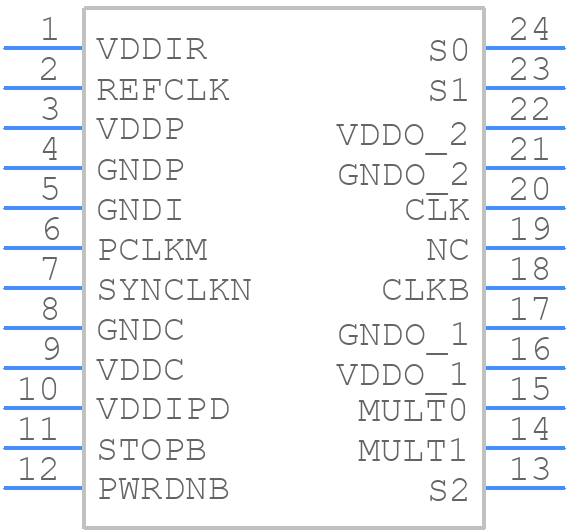

Use the download button to access the CDCFR83DBQRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDCFR,
or try a keyword search, such as Clock Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
