Texas Instruments recommends a layout with short, direct traces, and a solid ground plane to minimize noise and jitter. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended. Additionally, decoupling capacitors should be placed close to the device.
The CDCL1810RGZT requires a 1.8V power supply, and it's essential to use a low-noise, low-dropout regulator (LDO) to power the device. Decoupling capacitors (e.g., 0.1uF and 10uF) should be placed close to the device, with the smaller capacitor closer to the power pin. A 10nF capacitor can also be used to filter the clock input.
The CDCL1810RGZT can handle clock frequencies up to 1.5 GHz, but the maximum frequency depends on the specific application and the quality of the clock signal. It's recommended to consult the datasheet and application notes for specific guidance on clock frequency and signal integrity.
The CDCL1810RGZT has a programmable clock divider, which allows you to configure the output frequency. You can use the TI Clocking Architect tool or consult the datasheet and application notes to determine the correct divider settings for your specific application.
The typical power consumption of the CDCL1810RGZT is around 30-40 mA, depending on the clock frequency and output load. However, this value can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and perform power consumption calculations for your specific design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CDCL1810RGZT Overview

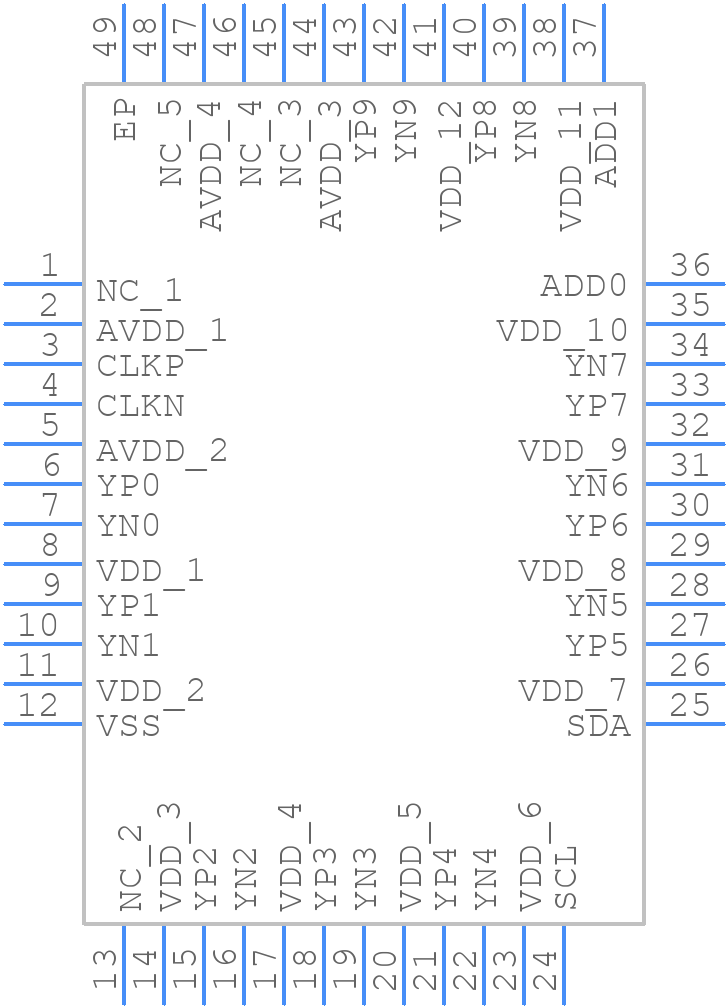

Use the download button to access the CDCL1810RGZT schematic symbol, PCB footprint, and 3D model.
