The recommended power-up sequence is to apply VCC first, followed by VCC_IO, and then the input clock signal. This ensures proper device operation and prevents potential latch-up conditions.
To minimize power consumption, ensure that the input clock signal is properly terminated, use the lowest possible input frequency, and consider using the device's built-in power-down feature (PD pin) when not in use.
The CDCL6010RGZR can handle clock frequencies up to 1.5 GHz, but the maximum frequency may vary depending on the specific application, PCB layout, and signal integrity. It's recommended to consult the datasheet and perform thorough testing to ensure reliable operation.
Yes, the CDCL6010RGZR can operate with a 3.3V supply voltage, but the device's performance and power consumption may vary. Consult the datasheet for specific voltage and current requirements, and ensure that the device is operated within its recommended operating conditions.
To troubleshoot output signal issues, verify that the input clock signal is properly terminated, check the device's power supply and voltage levels, and ensure that the output signal is properly loaded and terminated. Use oscilloscopes or logic analyzers to visualize the output signal and identify any anomalies.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CDCL6010RGZR Overview

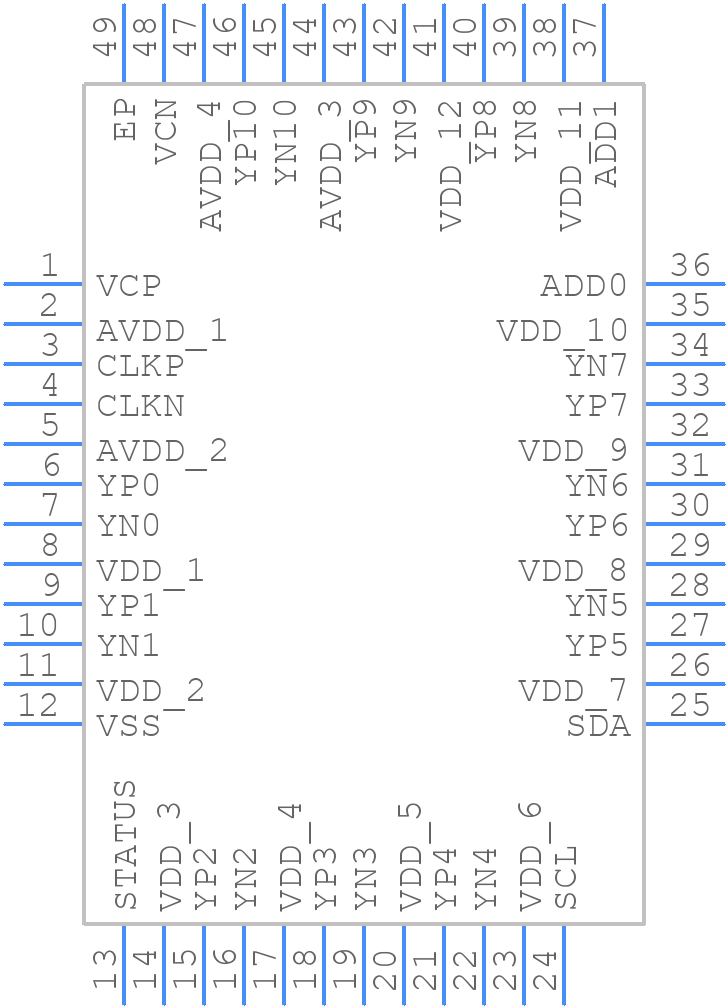

Use the download button to access the CDCL6010RGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDCL6,
or try a keyword search, such as Clock Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
