CDCLVC1110PW - Texas Instruments

Description: Low Jitter, 1:10 LVCMOS Fan-out Clock Buffer

Download CDCLVC1110PW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

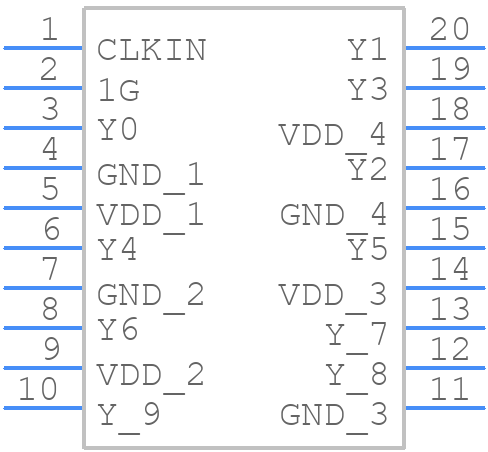

CDCLVC1110PW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CDCLVC1110PW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G20)
click to zoom
3D Models
CDCLVC1110PW - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G20)
click to zoom

CDCLVC1110PW Details

  • Manufacturer Part Number:

    CDCLVC1110PW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    CDC

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.012 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Number of True Outputs:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    2 ns

  • Propagation Delay (tpd):

    2.6 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.05 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    2.7 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • fmax-Min:

    250 MHz

CDCLVC1110PW Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to route the clock signal on the top layer, with the VCC and GND pins on the bottom layer. Additionally, use a 50-ohm transmission line for the clock signal and keep the clock signal away from other signals.
  • The CDCLVC1110PW requires a single 3.3V power supply, and it's recommended to use a low-dropout regulator (LDO) to ensure a clean power supply. Power sequencing is not critical, but it's recommended to power up the device after the power supply has stabilized.
  • The CDCLVC1110PW can handle clock frequencies up to 200 MHz. The clock signal should have a minimum amplitude of 200 mV and a maximum amplitude of 3.3V, with a rise and fall time of less than 1 ns.
  • The CDCLVC1110PW can be configured for different output frequencies by adjusting the external resistors and capacitors. The device has a built-in phase-locked loop (PLL) that can be configured for different output frequencies. Refer to the datasheet for specific configuration requirements and equations.
  • The CDCLVC1110PW has a maximum junction temperature of 150°C. To ensure proper heat dissipation, use a thermal pad on the bottom of the device, and ensure good airflow around the device. A heat sink may be required for high-frequency applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CDCLVC1110PW Overview

Use the download button to access the CDCLVC1110PW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDCLV, or try a keyword search, such as Clock Drivers
